  • FUJI NXT H12 Nozzle 2.5MM AA20C14
FUJI NXT H12 Nozzle 2.5MM AA20C14

FUJI NXT H12 Nozzle 2.5MM AA20C14

  • SMT Nozzle
  • FUJI Nozzle
  • FUJI NXT H12 Nozzle 2.5MM AA20C14
  • Usage:FUJI pick and place machine
  • Product description: FUJI NXT H12 Nozzle 2.5MM AA20C14
  • INQUIRY

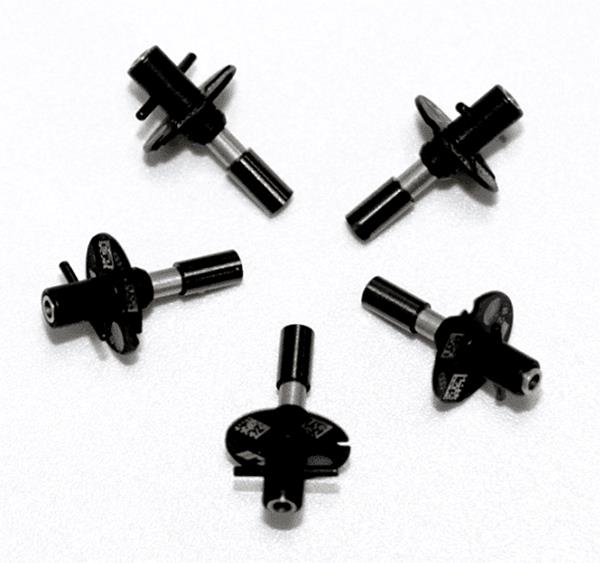

fuji nxt H12 Nozzle 2.5MM AA20C14

Products description

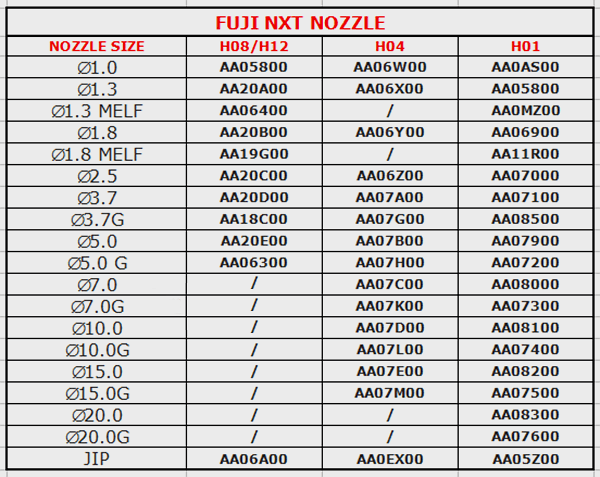

Flason SMT CAN SUPPLY OTHER FUJU NOZZLE MODELS:
AA1AT00 H08/H12 Placing Head Nozzle Dia.. 0.3 for 0402 (01005)
AA05600 H08/H12 Placing Head Nozzle Dia.. 0.4
AA05700 H08/H12 Placing Head Nozzle Dia.. 0.7
AA05800 H08/H12 Placing Head Nozzle Dia.. 1.0
AA20A00 H08/H12 Placing Head Nozzle Dia.. 1.3
AA20B00 H08/H12 Placing Head Nozzle Dia.. 1.8
AA20C00 H08/H12 Placing Head Nozzle Dia.. 2.5
AA20D00 H08/H12 Placing Head Nozzle Dia.. 3.7
AA20E00 H08/H12 Placing Head Nozzle Dia.. 5.0
AA06400 H08/H12 Placing Head Nozzle Dia.. 1.3M Melf
AA19G00 H08/H12 Placing Head Nozzle Dia.. 1.8M Melf
AA18C00 H08/H12 Placing Head Nozzle Dia.. 3.7G with Rubber Pad
AA06300 H08/H12 Placing Head Nozzle Dia.. 5.0G with Rubber Pad

AA8LS00 H08M Nozzle Dia. 0.4
AA8DX00 H08M Nozzle Dia. 0.7
AA8LT00 H08M Nozzle Dia. 1.0
AA8DY00 H08M Nozzle Dia. 1.3
AA8LW00 H08M Nozzle Dia. 1.8
AA8LX00 H08M Nozzle Dia. 2.5
AA8LY00 H08M Nozzle Dia. 3.7
AA8LZ00 H08M Nozzle Dia. 5.0
AA8MA00 H08M Nozzle Dia. 7.0
AA8MB00 H08M Nozzle Dia. 10.0
AA8MC00 H08M Nozzle Dia. 15.0
AA8MD00 H08M Nozzle Dia. 20.0

AA8MN00 H08M Nozzle Dia. 1.3 Melf
AA8MR00 H08M Nozzle Dia. 1.8 Melf
AA8MS00 H08M Nozzle Dia. 2.5 Melf
AA8ME00 H08M Nozzle Dia. 2.5 with rubber pad
AA8MF00 H08M Nozzle Dia. 3.7 with rubber pad
AA8MG00 H08M Nozzle Dia. 5.0 with rubber pad
AA8MH00 H08M Nozzle Dia. 7.0 with Rubber Pad
AA8MK00 H08M Nozzle Dia. 10.0 with Rubber Pad
AA8ML00 H08M Nozzle Dia. 15.0 with Rubber Pad
AA8MM00 H08M Nozzle Dia. 20.0 with Rubber Pad
AA08400 H01/H02 Placing Head Nozzle Dia.. 2.5G with Rubber Pad
AA08500 H01/H02 Placing Head Nozzle Dia.. 3.7G with Rubber Pad
AA07200 H01/H02 Placing Head Nozzle Dia.. 5.0G with Rubber Pad
AA07310 H01/H02 Placing Head Nozzle Dia.. 7.0G with Rubber Pad
AA07400 H01/H02 Placing Head Nozzle Dia.. 10.0G with Rubber Pad
AA07500 H01/H02 Placing Head Nozzle Dia.. 15.0G with Rubber Pad
AA07600 H01/H02 Placing Head Nozzle Dia.. 20.0G with Rubber Pad

AA0AS00 H01/H02 Placing Head Nozzle Dia.. 1.0
AA06800 H01/H02 Placing Head Nozzle Dia.. 1.3
AA0HL00 H01/H02 Placing Head Nozzle Dia.. 1.8
AA0HM00 H01/H02 Placing Head Nozzle Dia.. 2.5
AA0HN00 H01/H02 Placing Head Nozzle Dia.. 3.7
AA0HR01 H01/H02 Placing Head Nozzle Dia.. 5.0
AA08000 H01/H02 Placing Head nozzle Dia.. 7.0
AA08100 H01/H02 Placing Head Nozzle Dia.. 10.0
AA08200 H01/H02 Placing Head Nozzle Dia.. 15.0
AA08300 H01/H02 Placing Head Nozzle Dia.. 20.0
AA0MZ00 H01/H02 Placing Head Nozzle Dia.. 1.3M Melf
AA11R00 H01/H02 Placing Head Nozzle Dia.. 1.8M Melf

FUJI CP3 / CP4 Bore diameter 0.7 / 1.0 / 1.3
FUJI CP6 / CP7 Bore diameter 0.7 / 1.0 / 1.3 / 1.8
FUJI CP6 / CP7 Bore diameter 2.5 / 3.7 / 5.0
FUJI XP141 / 142 Bore diameter 2.5 / 3.7 / 5.0
FUJI XP141 / 142 0.7 / 1.0 / 1.3 / 1.8 / 2.5 / 3.7 / 5.0
FUJI XP242 / 242 nozzle Bore diameter 1.3 / 1.8 / 2.5 / 3.7 / 5.0
FUJI QP341 1.3 / 1.8 / 2.5 / 3.7 / 5.0
FUJI QP341 5.0G / 7.0G / 8.0G / 10.0G / 15.0G / 20.0G
FUJI IP3 1.3 / 1.8 / 2.5 / 3.7 / 5.0 / 7.0 / 10.0
FUJI NXT H01 1.0 / 1.3 / 1.8 / 2.5 / 3.7 / 5.0 / 7.0
FUJI NXT H04 1.0 / 1.3 / 1.8 / 2.5 / 3.7 / 5.0 / 7.0
FUJI NXT H08/12 0.7 / 1.0 / 1.3 / 1.8 / 2.5 / 3.7 / 5.0

FUJI QP242 INDEX SMT NOZZLE
Part Number (OEM) Description
ABHPN - 8510 QP-S-12 -Ø 0.7
ABHPN - 8520 QP-S-12 NZ. Ø 1.0
ABHPN - 8530 QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN - 8560 QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN - 8570 QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN - 8590 QP-L-47 NZ. Ø 7.0

FUJI QP SMT NOZZLE
Part Number (OEM) Description
BHPN - 3271 QP SMT NOZZLE SPRING PLATE
BHPN - 3232 QP SMT NOZZLE SPRING PLATE
ABHPN - 6246 - Ø 2.5
ABHPN - 6256 - Ø 3.75
ABHPN - 6276 - Ø 7.0
ABHPN - 6365 - Ø 7.0
ABHPN - 6852 - Ø 5.0 (W/RUBBER CUP)
ABHPN - 6893 - Ø 8.0 (W/RUBBER CUP)
ABHPN - 6803 - Ø 15.0 (W/RUBBER CUP)
ABHPN - 6703 - Ø 17.5 (W/RUBBER CUP)

FUJI QP132 INDEX SMT NOZZLE
Part Number Description
CGPN-8036 QP132 Ø0.7 / Ø0.4
CGPN-80250 QP132 Ø1.0 / Ø0.7
CGPN-8015 QP132 Ø1.3 / Ø0.9
FUJI QP341 INDEX SMT NOZZLE
Part Number (OEM) Description
ADBPN-8123 QP-3 NOZZLE 1.8Φ
ADBPN-8133 QP-3 NOZZLE 2.5Φ
ADBPN-8193 QP-3 NOZZLE 2.5ΦG
ADBPN-8143 QP-3 NOZZLE 3.75Φ
ADBPN-8023 QP-3 NOZZLE 5Φ
ADBPN-8203 QP-3 NOZZLE 5ΦG

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

samsung Nozzle, yamaha chip mounter Nozzle, SMT Nozzle, juki Nozzle, panasonic Nozzle, pick and place machine Nozzle, Seimens Nozzle, Yamaha Nozzle, FUJI Nozzle, JUKI Nozzle,Hitachi Nozzle.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
