Home > SMT Nozzle

  • FUJI NXT H04 NOZZLE 1.3 AA06X00 FUJI SMT PARTS
FUJI NXT H04 NOZZLE 1.3 AA06X00 FUJI SMT PARTS

FUJI NXT H04 NOZZLE 1.3 AA06X00 FUJI SMT PARTS

  • SMT Nozzle
  • FUJI Nozzle
  • FUJI NXT H04 NOZZLE 1.3 AA06X00 FUJI SMT PARTS
  • Usage:FUJI pick and place machine
  • Product description: FUJI NXT H04 NOZZLE 1.3 AA06X00 FUJI SMT PARTS
  • INQUIRY

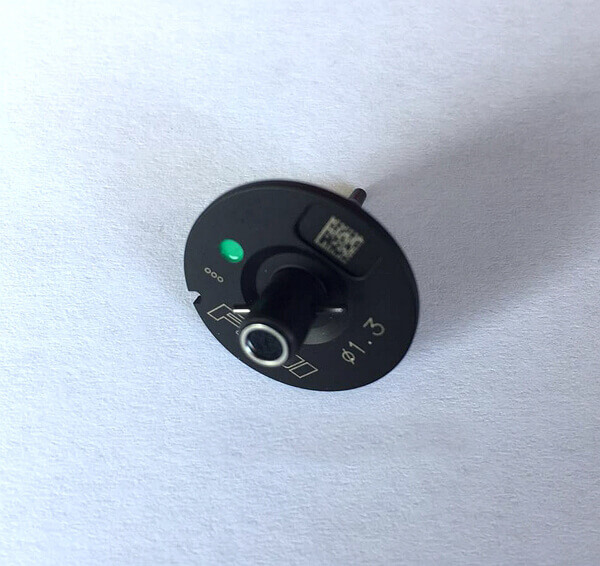

fuji nxt H04 NOZZLE 1.3 AA06X00 FUJI SMT PARTS

Products description

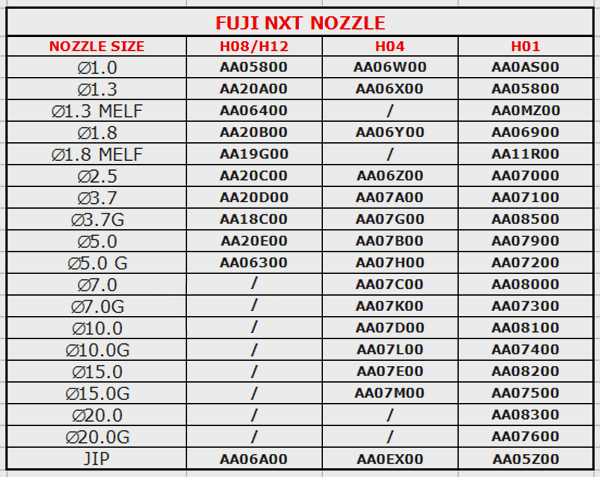

FUJI NXT H04 NOZZLE 1.3 AA06X00|FUJI SMT PARTS


Flason SMT CAN SUPPLY OTHER FUJI NOZZLE AS FOLLOWS:

CP4 NOZZLE
Part Number(OEM) Description
AMPH - 8710 CP4/S PICK UP NOZZLE Ø 0.7
AMPH - 8720 CP4/S PICK UP NOZZLE Ø 1.0
AMPH - 8730 CP4/S PICK UP NOZZLE Ø 1.3
AMPH - 8740 CP4/S PICK UP NOZZLE Ø 1.8
AMPH - 8750 CP4/S PICK UP NOZZLE Ø 2.5
AMPH - 8760 CP4/L PICK UP NOZZLE Ø 2.5
AMPH - 8770 CP4/L PICK UP NOZZLE Ø 3.7
AMPH - 8780 CP4/L PICK UP NOZZLE Ø 5.0

CP2-CP3 Nozzle
Part Number(OEM) Description
AGPH - 9560 CP3/S PICK UP NOZZLE Ø 0.7
AGPH - 9410 CP3/S PICK UP NOZZLE Ø 1.0
AGPH - 9130 CP3/S PICK UP NOZZLE Ø 1.3
AGPH - 9050 CP3/S PICK UP NOZZLE Ø 1.3 (MELF)
AGPH - 9470 CP3/L PICK UP NOZZLE Ø 1.3
AGPH - 9060 CP3/L PICK UP NOZZLE Ø 2.5
AGPH - 9430 CP3/L PICK UP NOZZLE Ø 3.4
AGPH - 9460 CP3/L PICK UP NOZZLE Ø 1.3 (MELF)

FUJI CP3 DARKPOINT PICK UP NOZZLE
Part Number(OEM) Description
AGPH - 9570 CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550 CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190 CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200 CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440 CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5

CP6 NOZZLE
Part Number(OEM) Description
AWPH - 9510 CP6/S PICK UP NOZZLE Ø 0.7
AWPH - 9520 CP6/S PICK UP NOZZLE Ø 1.0
AWPH - 9530 CP6/S PICK UP NOZZLE Ø 1.3
AWPH - 9550 CP6/S PICK UP NOZZLE Ø 1.8
AWPH - 9541 CP6/S PICK UP NOZZLE Ø 1.3 (MELF)
AWPH - 9580 CP6/L PICK UP NOZZLE Ø 2.5
AWPH - 9600 CP6/L PICK UP NOZZLE Ø 3.7
AWPH - 9591 CP6/L PICK UP NOZZLE Ø 2.5 (MELF)
AWPH - 9560 CP6/M PICK UP NOZZLE Ø 2.5

CP7 NOZZLE
Part Number(OEM) Description
ADCPH - 9510 CP7/S NOZZLE Ø0.4 (8mm Diameter)
ADCPH - 9520 CP7/S NOZZLE Ø0.7 (8mm Diameter)
ADCPH - 9530 CP7/S NOZZLE Ø1.0 (8mm Diameter)
ADCPH - 9540 CP7/S NOZZLE Ø1.3 (8mm Diameter)
ADCPH - 9700 CP7/S NOZZLE Ø1.3 (8mm Diameter) MELF
ADCPH - 9550 CP7/S NOZZLE Ø1.8 (16mm Diameter)
ADCPH - 9560 CP7/L NOZZLE Ø2.5 (16mm Diameter)
ADCPH - 9710 CP7/L NOZZLE Ø2.5 (16mm Diameter) MELF
ADCPH - 9570 CP7/L NOZZLE Ø3.7 (16mm Diameter)
ADCPH - 9580 CP7/L NOZZLE Ø5.0 (16mm Diameter) SQUARE

IP1-IP2 NOZZLE
Part Number(OEM) Description
IPH - 3431 IP - SS NOZZLE Ø 1.0
IPH - 3421 IP - S NOZZLE Ø 1.3
IPH - 3411 IP - M NOZZLE Ø 2.5
IPH - 3401 IP - L NOZZLE Ø 4.0
IPH - 4511 IP - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520 IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531 IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541 IP - LL NOZZLE Ø 20.0 (WITH CAP)
AKPH - 2051 IP2 - SS NOZZLE Ø 1.0 (FIXED)
AKPH - 2031 IP2 - S NOZZLE Ø 1.3 (FIXED)
AKPH - 2041 IP2 - M NOZZLE Ø 2.5 (FIXED)
AKPH - 2061 IP2 - L NOZZLE Ø 4.0 (FIXED)
AIPH - 4030 IP2 -1.3 /21mm DISK
AIPH - 4090 IP2 - 2.5 /33mm DISK
AIPH - 4100 IP2 - 4.0 /71mm DISK
AIPH - 4120 IP 2-10.0 /91mm DISK

IP3 Nozzle
Part Number(OEM) Description
AQNA - 3110/19 IP3 - NOZZLE Ø 0.7 (FIXED) (10mm)
AQNA - 3120/29 IP3 - NOZZLE Ø 1.0 (FIXED) (10mm)
AQNA - 3130/39 IP3 - NOZZLE Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49 IP3 - NOZZLE Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59 IP3 - NOZZLE Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69 IP3 - NOZZLE Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170 IP3 - NOZZLE Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180 IP3 - NOZZLE Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190 IP3 - NOZZLE Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01 IP3 - NOZZLE Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95 IP3 - NOZZLE Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04 IP3 - NOZZLE Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14 IP3 - NOZZLE Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24 IP3 - NOZZLE Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34 IP3 - NOZZLE Ø 6.5 (FIXED) (52 x 52mm)

QP242 INDEX Nozzle
Part Number(OEM) Description
ABHPN-8510 QP-2 INDEX NOZZLE 0.7Φ/12
ABHPN-8520 QP-2 INDEX NOZZLE 1.0Φ/12
ABHPN-8530 QP-2 INDEX NOZZLE 1.3/12
ABHPN-8670 QP-2 INDEX NOZZLE 1.3/38
ABHPN-8540 QP-2 INDEX NOZZLE 1.8Φ/12
ABHPN-8550 QP-2 INDEX NOZZLE 2.5Φ/38
ABHPN-8560 QP-2 INDEX NOZZLE 2.5ΦG/38
ABHPN-8570 QP-2 INDEX NOZZLE 3.75Φ/38
ABHPN-8580 QP-2 INDEX NOZZLE 6.5ΦG/47
ABHPN-8590 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8600 QP-2 INDEX NOZZLE 10.0Φ/47F
ABHPN-8610 QP-2 INDEX NOZZLE 2.5Φ/38F
ABHPN-8620 QP-2 INDEX NOZZLE 2.5ΦG/38F
ABHPN-8630 QP-2 INDEX NOZZLE 3.75Φ/38F
ABHPN-8640 QP-2 INDEX NOZZLE 6.5ΦG/47F
ABHPN-8650 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8660 QP-2 INDEX NOZZLE 10.0Φ/47F

QP242 SINGLE Nozzle
Part Number(OEM) Description
ABHPN-6217 QP-2 NOZZLE SINGLE 1.0Φ L=270F
ABHPN-6227 QP-2 NOZZLE SINGLE 1.3Φ L=270F
ABHPN-6237 QP-2 NOZZLE SINGLE 1.8Φ L=270F
ABHPN-6248 QP-2 NOZZLE SINGLE 2.5Φ L=270F
ABHPN-6718 QP-2 NOZZLE SINGLE 2.5GΦ L=270F
ABHPN-6258 QP-2 NOZZLE SINGLE 3.75Φ L=270F
ABHPN-6855 QP-2 NOZZLE SINGLE 5ΦG L=270F
ABHPN-8196 QP-2 NOZZLE SINGLE 5ΦG L=270(back)
ABHPN-6273 QP-2 NOZZLE SINGLE 7Φ L=270F
ABHPN-6895 QP-2 NOZZLE SINGLE 8ΦG L=270F
ABHPN-8216 QP-2 NOZZLE SINGLE 8ΦG L=270(back)
ABHPN-6283 QP-2 NOZZLE SINGLE 10ΦL=270F
ABHPN-6293 QP-2 NOZZLE SINGLE 15Φ L=270F
ABHPN-6805 QP-2 NOZZLE SINGLE 15ΦG L=270F
ABHPN-6705 QP-2 NOZZLE SINGLE 17.5GΦ L=270F
ABHPN-6300 QP-2 NOZZLE SINGLE 20Φ L=270F
ABHPN-6330 QP-2 NOZZLE SINGLE 0.7 Φ L=185F
ABHPN-6750 QP-2 NOZZLE SINGLE 6.5ΦG L=185F
ABHPN-6360 QP-2 NOZZLE SINGLE 7Φ L=185F
ABHPN-6810 QP-2 NOZZLE SINGLE 7Φ L=100F
ABHPN-6770 QP-2 NOZZLE SINGLE 10Φ L=185F
ABHPN-6340 QP-2 NOZZLE SINGLE 10ΦG L=185F
ABHPN-6821 QP-2 NOZZLE SINGLE 10Φ L=100F
ABHPN-6780 QP-2 NOZZLE SINGLE 15Φ L=185F
ABHPN-6831 QP-2 NOZZLE SINGLE 15Φ L=100F
ABHPN-6790 QP-2 NOZZLE SINGLE 20Φ L185F
ABHPN-6840 QP-2 NOZZLE SINGLE 20Φ L100F
ABHPN-6850 QP-2 NOZZLE SINGLE 23ΦG (for BGA)

QP3 Nozzle
Part Number(OEM) Description
ADBPN-8123 QP-3 NOZZLE 1.8Φ
ADBPN-8133 QP-3 NOZZLE 2.5Φ
ADBPN-8193 QP-3 NOZZLE 2.5ΦG
ADBPN-8143 QP-3 NOZZLE 3.75Φ
ADBPN-8023 QP-3 NOZZLE 5Φ
ADBPN-8203 QP-3 NOZZLE 5ΦG
ADBPN-8213 QP-3 NOZZLE 8ΦG
ADBPN-8223 QP-3 NOZZLE 15ΦG
ADBPN-8233 QP-3 NOZZLE 17.5ΦG
ADBPN-8180 QP-3 NOZZLE SINGLE 20Φ L=270
ADBPN-8440 QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340 QP-3 NOZZLE SINGLE 20Φ L=110
ADBPN-8341 QP-3 NOZZLE SINGLE 23ΦG (for BGA)

XP141E nozzle
Part Number(OEM) Description
ADEPN-8070 XP-141 NOZZLE ASS'Y-0.7Φ
ADEPN-8080 XP-141 NOZZLE ASS'Y-1.0Φ
ADEPN-8090 XP-141 NOZZLE ASS'Y-1.3Φ
ADEPN-8100 XP-141 NOZZLE ASS'Y-1.8Φ

XP142E / XP143E Nozzle
Part Number(OEM) Description
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8250 XP-142 NOZZLE ASS'Y-1.8Φ
ADNPN8260 XP-142 NOZZLE ASS'Y-2.5Φ
ADNPN8270 XP-142 NOZZLE ASS'Y-3.7Φ
ADNPN8280 XP-142 NOZZLE ASS'Y-5.0Φ

Machine Fuji CP6
P/N: AWPH-9702
P/N: AWPH9510 Des: Nozzle,0.7 (12mm disc)
P/N: AWPH9520 Des: Nozzle,1.0 (12mm disc)
P/N: AWPH9530 Des: Nozzle,1.3 (12mm disc)
P/N: AWPH9540 Des: Nozzle,1.3 (12mm disc) Melf
P/N: AWPH9550 Des: Nozzle,1.8 (12mm disc)
P/N: AWPH9560 Des: Nozzle,2.5 (16mm disc)
P/N: AWPH9570 Des: Nozzle,3.7 (16mm disc)
P/N: AWPH9580 Des: Nozzle,2.5 (20mm disc)
P/N: AWPH9590 Des: Nozzle,2.5 (20mm disc) Melf
P/N: AWPH9600 Des: Nozzle,3.75 (20mm disc)

Machine Fuji CP7/CP8
Des: Nozzle,0.4 (8mm disc)
P/N: Des: Nozzle,0.4 (8mm disc) taper tip
P/N: ADCPH9520 Des: Nozzle,0.7 (8mm disc)
P/N: ADCPH9530 Des: Nozzle,1.0 (8mm disc)
P/N: ADCPH9540 Des: Nozzle,1.3 (8mm disc)
P/N: ADCPH9700 Des: Nozzle,1.3 (8mm disc) Melf
P/N: ADCPH9550 Des: Nozzle,1.8 (16mm disc)
P/N: ADCPH9560 Des: Nozzle,2.5 (16mm disc)
P/N: ADCPH9800 Des: Nozzle,2.5 (16mm disc) Melf
P/N: ADCPH9570 Des: Nozzle,3.75 (16mm disc)

Machine Fuji QP242
P/N: ABHPN-8510 Des: Nozzle,QP-2 INDEX NOZZLE 0.7/12
P/N: ABHPN-8520 Des: Nozzle,QP-2 INDEX NOZZLE 1.0/12
P/N: ABHPN-8530 Des: Nozzle,QP-2 INDEX NOZZLE 1.3/12
P/N: ABHPN-8670 Des: Nozzle,QP-2 INDEX NOZZLE 1.3/38
P/N: ABHPN-8540 Des: Nozzle,QP-2 INDEX NOZZLE 1.8/12
P/N: ABHPN-8550 Des: Nozzle,QP-2 INDEX NOZZLE 2.5/38
P/N: ABHPN-8560 Des: Nozzle,QP-2 INDEX NOZZLE 2.5G/38
P/N: ABHPN-8570 Des: Nozzle,QP-2 INDEX NOZZLE 3.75/38
P/N: ABHPN-8580 Des: Nozzle,QP-2 INDEX NOZZLE 6.5G/47
P/N: ABHPN-8590 Des: Nozzle,QP-2 INDEX NOZZLE 7.0/47
P/N: ABHPN-8600 Des: Nozzle,QP-2 INDEX NOZZLE 10.0/47
P/N: ABHPN-8610 Des: Nozzle,QP-2 INDEX NOZZLE 2.5/38F
P/N: ABHPN-8620 Des: Nozzle,QP-2 INDEX NOZZLE 2.5G/38F
P/N: ABHPN-8630 Des: Nozzle,QP-2 INDEX NOZZLE 3.75/38F
P/N: ABHPN-8640 Des: Nozzle,QP-2 INDEX NOZZLE 6.5G/47F
P/N: ABHPN-8650 Des: Nozzle,QP-2 INDEX NOZZLE 7.0/47F
P/N: ABHPN-8660 Des: Nozzle,QP-2 INDEX NOZZLE 10.0/47F
P/N: ABHPN-6217 Des: Nozzle,QP-2 NOZZLE SINGLE 1.0 L=270F
P/N: ABHPN-6227 Des: Nozzle,QP-2 NOZZLE SINGLE 1.3 L=270F
P/N: ABHPN-6237 Des: Nozzle,QP-2 NOZZLE SINGLE 1.8 L=270F
P/N: ABHPN-6248 Des: Nozzle,QP-2 NOZZLE SINGLE 2.5 L=270F
P/N: ABHPN-6718 Des: Nozzle,QP-2 NOZZLE SINGLE 2.5G L=270F
P/N: ABHPN-6258 Des: Nozzle,QP-2 NOZZLE SINGLE 3.75 L=270F
P/N: ABHPN-6855 Des: Nozzle,QP-2 NOZZLE SINGLE 5G L=270F
P/N: ABHPN-8196 Des: Nozzle,QP-2 NOZZLE SINGLE 5G L=270(back)
P/N: ABHPN-6273 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=270F
P/N: ABHPN-6895 Des: Nozzle,QP-2 NOZZLE SINGLE 8G L=270F
P/N: ABHPN-8216 Des: Nozzle,QP-2 NOZZLE SINGLE 8G L=270(back)
P/N: ABHPN-6283 Des: Nozzle,QP-2 NOZZLE SINGLE 10L=270F
P/N: ABHPN-6293 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=270F
P/N: ABHPN-6805 Des: Nozzle,QP-2 NOZZLE SINGLE 15G L=270F
P/N: ABHPN-6705 Des: Nozzle,QP-2 NOZZLE SINGLE 17.5G L=270F
P/N: ABHPN-6300 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L=270F
P/N: ABHPN-6330 Des: Nozzle,QP-2 NOZZLE SINGLE 0.7 L=185F
P/N: ABHPN-6750 Des: Nozzle,QP-2 NOZZLE SINGLE 6.5G L=185F
P/N: ABHPN-6360 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=185F
P/N: ABHPN-6810 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=100F
P/N: ABHPN-6770 Des: Nozzle,QP-2 NOZZLE SINGLE 10 L=185F
P/N: ABHPN-6340 Des: Nozzle,QP-2 NOZZLE SINGLE 10G L=185F
P/N: ABHPN-6821 Des: Nozzle,QP-2 NOZZLE SINGLE 10 L=100F
P/N: ABHPN-6780 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=185F
P/N: ABHPN-6831 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=100F
P/N: ABHPN-6790 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L185F
P/N: ABHPN-6840 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L100F

If there is no matching models,pls kindly contact us directly!

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

samsung Nozzle, yamaha chip mounter Nozzle, SMT Nozzle, juki Nozzle, panasonic Nozzle, pick and place machine Nozzle, Seimens Nozzle, Yamaha Nozzle, FUJI Nozzle, JUKI Nozzle,Hitachi Nozzle.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !


Contact information
