Ersa HOTFLOW 3/20 reflow oven

Products description



  • Excellent heat transfer with the most varied board assemblies
  • Rest-oxygen monitoring and control with low N2 consumption
  • Low energy consumption through intelligent energy management
  • Multi-level controlled cooling
  • Multi-level process gas cleaning system
  • "On the fly" maintenance for increased machine availability / uptime
  • Multi-track conveyor system (1-4 tracks)
  • Ersa Process Control (EPC) for continuous process monitoring
  • Ersa Auto Profiler software for quickly generating temperature profiles

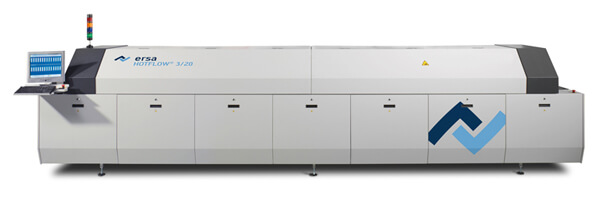

Ersa HOTFLOW 3/20 Reflow Oven
The Ersa HOTFLOW 3/20 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions
Length: 6,590 mm
Width: 1,530 mm
Height: 1,450 mm
Weight appr. 3,200 kg
Conveyor system
Working width: 45-580 mm automatically infinitely adjustable
Clear passing height: +25 (35)/-37 mm
Centre support, automatically infinitely adjustable
Conveyor speed: 20-200 cm/min
Pin-and-chain conveyor with 3 / 4 / 5 mm pin length
Process zone
Process length: 5,190 mm
Heated length: 3,700 mm
Cooling length: 1,490 mm
Heating system

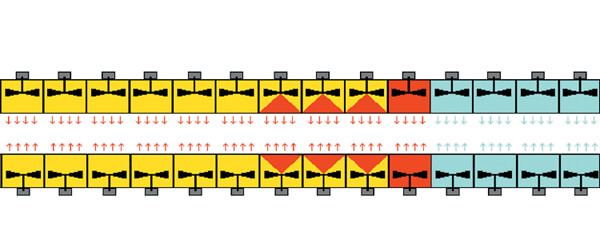

Up to 20 convections heating cassettes
(Preheating up to 14 cassettes, reflow zone up to 6 cassettes)
Volumetric flow rate each module adjustable up to 500 m3/h
Rated power each module: 3.3 kW
Cooling
Up to 4 levels cooling zone with water back-cooling
Electrical data
400 V, 3 Phase, N, Ground, 50/60 Hz
Continuous output during operation: appr. 12-19 kW
Exhaust
Extraction rate 2x 400 m3/h with monitoring feature
Options:

  • Multi-track conveyor system with separate drives each track
  • Connectable center supports
  • Inert atmosphere feature with rest-oxygen monitoring and control
  • Metering of N2 consumption
  • Power-cooling with 3 convection modules and "on the fly" process gas cleaning
  • Emergency power supply
  • Ersa Process Control (EPC)
  • Auto Profiler
  • Computation of energy consumption
  • Quick profile change
  • Up to 4 tracks with center support can be installed (1 track fixed, 3 tracks movable) - increasing the flexibility of the system
