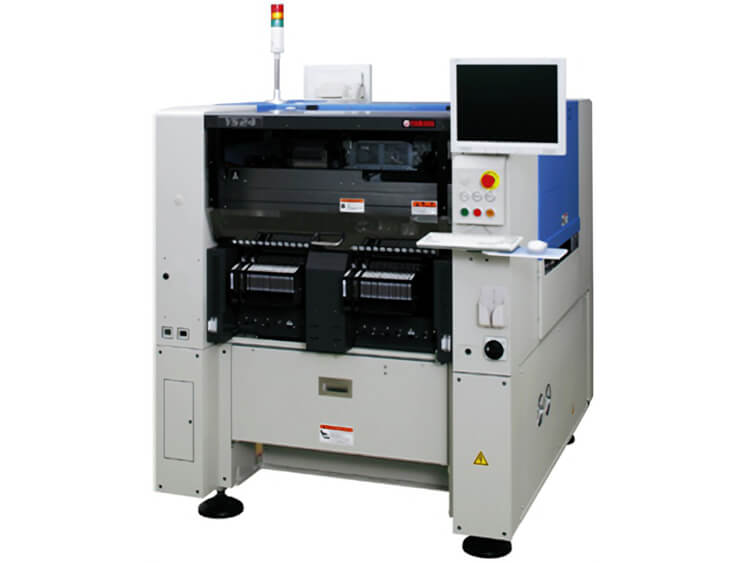

Yamaha YS24 Pick and Place Machine

Yamaha YS24 Pick and Place Machine

  • Mounting Capability: 72,000 CPH
  • Board size: L50xW50mm to L700xW460mm
  • Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
  • Weight: Approx. 1,700KG
  • Product description: Yamaha YS24 Pick and Place Machine, Mounting Capability: 72,000 CPH, Board size: L50xW50mm to L700xW460mm, Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less), Weight: Approx. 1,700KG
  • INQUIRY

Yamaha YS24 Pick and Place Machine

Introduction


YAMAHA YS24

Compact -Super-High -Speed Modular
Features:
72,000CPH (0.05sec/CHIP)
34kCPH(Area-productivity, top class in the world)
L700 x W460mm (Super large PCB applicable)
YAMAHA Dual Lane System applicable
120 Max feeder capacity
0402 to 32 x 32mm(Components applicable)
Specifications
Model YAMAHA YS24
Applicable PCB L50xW50mm –to L700xW460mm
Mounting accuracy +/-0.05mm ( 3), +/-0.03mm (3)
Speed 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Applicable components 0402 to 32x32mm MAX (Height 6.5mm or less)
Component Types 120 types (Max./8mm wide tape reel conversion)
Power supply Three phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source 0.45MPa
External dimension L1,254x W1,687x H1,445mm (Excluding protrusions)
Weight Approx. 1,700kg

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]




FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
