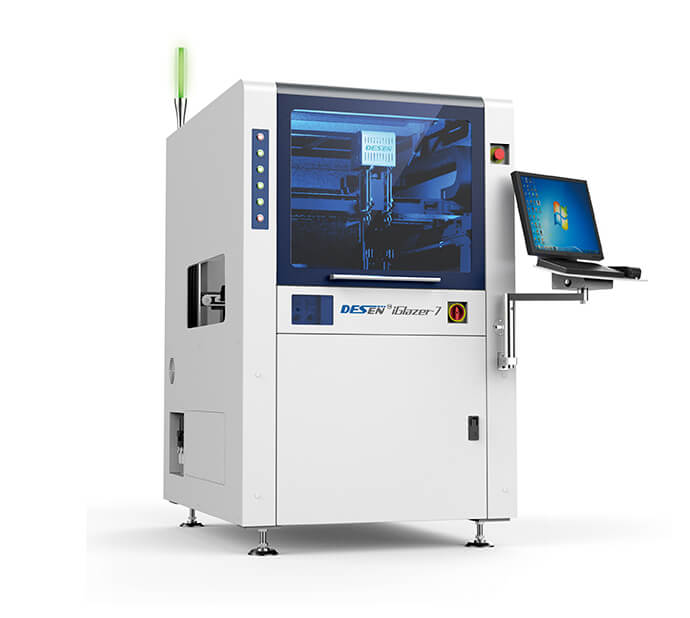

Automatic Selective Coating Machine

Automatic Selective Coating Machine

  • Maximum Speed: 1000mm/s
  • Max PCB:450*450mm
  • Position Accuracy ±0.02mm
  • Size 900*1260*1550mm
  • Product description: Online Automatic Selective Coating Machine Manufacturer, Maximum Speed:1000mm/s, Max PCB:450*450mm, Position Accuracy ±0.02mm, Size 900*1260*1550mm
  • INQUIRY

Automatic Selective Coating Machine

Specifications:

Automatic Selective Coating Machine

Product features

The X-Y-Z-U four-axis movement and whole-piece welding of reinforced rack ensure stable high-speed operation;

The selective coating allows precise coating of selected zones;

No uncoated area, with U axis capable of rotating 180 degrees in two directions, rubber valve turning 35 degrees to completely coat the whole workpiece;

The X, Y and Z all have imported linear module and are driven by imported servo motor which provides high speed, stability and precise positioning and achieves high speed and precise coating;

The Z axis is in combination with professional and precise coating valve to ensure uniform coating;

ning and achieves high speed and precise coating;

Equipped with online programming system to support coating paths including point, line, circle and zone, and allow coating on various PCBs;

Appliable to PCBA surface coating, dam process, solder mask coating, and DIP components reinforcement;

Name

460F

Appearance of Size

900*1260*1550 (L*W*H)

900*1260*1550 (L*W*H)

Board Size

450*450(MAX),50*50(MIN)

450*450(MAX),50*50(MIN)

Height of Maximum Component

Top and bottom 100mm each

Fop and bottom 100mm each

Height

900±20mm

900±20mm

Transmission Power

86 stepper motor

86 stepper motor

Transmission Method

25 # stainless steel chain

25 # stainless steel chain

Adjustable Method

Electric Adjustable

Electric Adjustable

Whether to Reserve the Backplane

Yes

Yes

Whether with U Axis

Without U Axis

With U Axis

Valve Available

Two

Three

Maximum Speed

1000mm/s

1000mm/s

Position Accuracy

±0.02mm

±0.02mm

Repeat Accuracy

±0.02mm

±0.02mm

Axis

3 sets

4 sets

Valve Type

Fine Atomization Valve, Needle Dispensing Valve (Membrane Valve optional)

Fine Atomization Valve, Needle Dispensing Valve (Membrane Valve optional)

Voltage

220V 50-60HZ

220V 50-60HZ

Input air Pressure

0.3-0.6Kpa

0.3-0.6Kpa

Total Power

1.8KW

2KW
