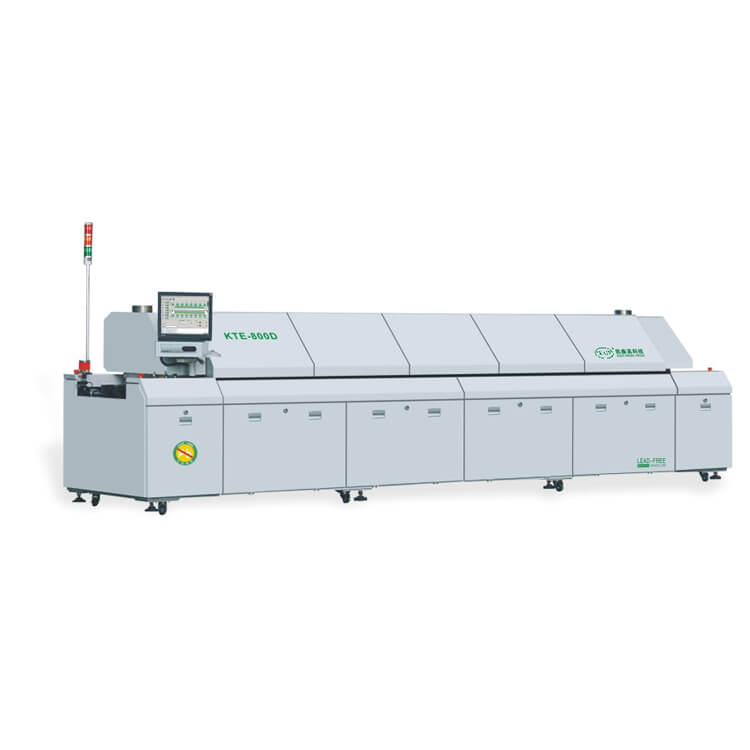

8 Zones Dual Rail SMT Reflow Oven KTE-800D

Dual Rail Conveyor
8 heating zones
Weight Apprx.:2645KG
Dimension: 5378x1539x1490mm
Product description: 8 Zones Dual Rail SMT Reflow Oven KTE-800D, Dual Rail Conveyor, 8 heating zones, Dimension: 5378x1539x1490mm, Weight Apprx.:2645KG
INQUIRY

Specifications:

8 Zones Dual Rail SMT Reflow Oven KTE-800D

Advantage:

1. Totally meet various requirements for the lead free processing.

2. WindowsXP operation system, Chinese/English can be swtiched online.

3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.

4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.

5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.

6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.

*Machine Specification*
Model	KTE-800D	Control	Industrial computer
Heating zones qty.	Top 8, bottom 8	Cooling zones qty.	Top 2
Heating zone length	3110mm	Rectifying plate	Galvanized plate
Weight	Apprx.:2645KG	Dimension	5378x1539x1490mm
Exhaust capacity	10㎡/min×2	Color	Grey
*Control system*
Electricity supply	3P 380V/220V 50/60HZ	Temp. control range	Room temp.～300℃
Total power	70KW	Temp. control accuracy	±1℃（static state）
Start power	32KW	Temp. control method	PID +SSR drive
Consumption power	11KW	PCB temperature deviation	±1.5℃
Speed control	Inverter adjust	Data save	All profiles can be saved
Warm up time	Apprx.30minute	Abnormal alarm	High, low temp. alarm
*Conveying system*
Rail structure	2 sectional rails	Rail fixed method	1,4 fix, 2,3 moving
Chain	Stuck-free type	Conveying height	900±20mm
PCB Max. width	50-400mm	Conveying method	Rail+ mesh+ chain
Component height	Top/bottom 25mm	Conveying speed	300-2000mm
Conveying direction	Left to right	Lubrication	Automatic
*Cooling system*
Cooling method	Forced air cooling
*Heating features*
Heating zones	Top 8,bottom 8（3110mm）can meet the need of the peak lead-free technique.
Cooling zones	After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time	From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence	Warm up from two side, save the power and time
Profile transfer time	＜15min
Heating zone temp. control accuracy	±1℃
PCB temp. deviation	±1.5℃
Empty to full load heat balance respond time	≤20 s
