Home > SMT Feeder

  • YAMAHA CL 32mm Feeder KW1-M5500-010

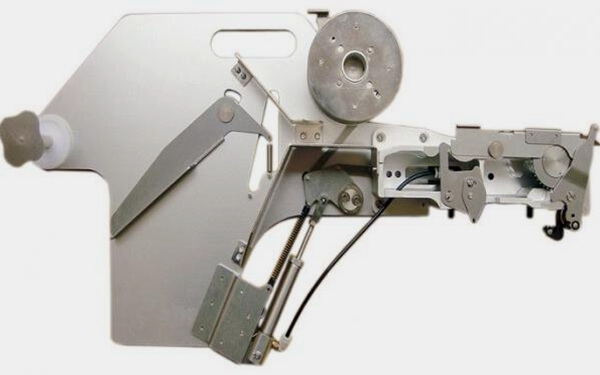

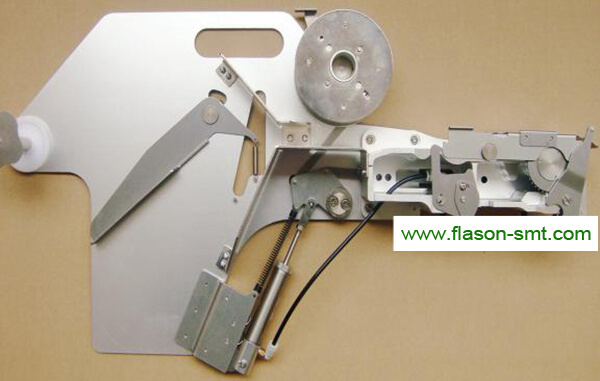

YAMAHA CL 32mm Feeder KW1-M5500-010

YAMAHA CL 32mm Feeder KW1-M5500-010

  • SMT Feeder
  • YAMAHA CL 32mm Feeder KW1-M5500-010
  • YAMAHA CL 32mm Feeder
  • YAMAHA chip mounter CL 32mm Feeder
  • Product description: YAMAHA CL 32mm Feeder KW1-M5500-010
  • INQUIRY

yamaha CL 32mm Feeder KW1-M5500-010

Specifications:

YAMAHA CL FeederSeries

SMT YAMAHA CL 32mm Feeder KW1-M5500-010
Part Number: KW1-M5500-010

YAMAHA CL Feede                                                            Part No:
Yamaha CL 8*2mm Feeders for 0201                                   KW1-M1500-030
Yamaha CL 8*2mm Feeders for 0402                                   KW1-M1400-00X
Yamaha CL 8*4mm Feeders                                                 KW1-M1100-000
Yamaha CL 12mm Feeders                                                   KW1-M2200-300
Yamaha CL 16mm Feeders                                                   KW1-M3200-10X
Yamaha CL 24mm Feeders                                                   KW1-M4500-015
Yamaha CL 32mm Feeders                                                   KW1-M5500-010
Yamaha CL 44mm Feeders                                                   KW1-M6500-000
Yamaha CL 56mm Feeders                                                   KW1-M7500-000
Yamaha CL 72mm Feeders                                                   KW1-M8500-000

FLASON can also supply other yamaha feeder as follows:
YAMAHA FEEDER SS16MM KUJ-MC300-000
YAMAHA FEEDER SS24MM KUJ-MC400-000
YAMAHA FEEDER SS56MM KUJ-MC700-000
YAMAHA FEEDER SS72MM KUJ-MC800-000
YAMAHA FEEDER FT8*4MM KJW-M1200-023
YAMAHA FEEDER FS2 8*2MM KJK-M1300-011
YAMAHA FEEDER ZS16MM KLJ-MC300-000
YAMAHA FEEDER ZS24MM KLJ-MC400-000
YAMAHA FEEDER ZS56MM KLJ- MC700-000
YAMAHA FEEDER ZS72MM KLJ-MC800-000

The responsibility of our enterprise:
1.FLASONSMT have always been adhering to the "quality of survival, quality tree brand, quality and efficiency, quality to promote development" quality policy

2.We always adhere to the premise of ensuring the quality of customer production, reduce customer production costs.

3.Unremittingly to the needs of our customers for the direction of our work.

Our business scope:
1.Nozzles, Feeders, Feeder Parts, cutters, filters, belts, motors, valves, sensors, camera, board cards and other machine parts...
2.Feeder Calibration Jigs, Feeder Storage Carts, IC Tray feeders, Stick feeders, Feeder Loading Unit,
3.Printer squeegee holder/blade, Clamp foil and other Printer Parts.
4.ESD splice tape, tool, stencil clean wiper/paper, PCB Magazine...
5.SMT Peripheral equipment (PCB Separator, solder paste mixer, Automatic SMD Chip Counter, etc... )
6.SMT product recycling (feeder nozzle used machine)

YAMAHA FEEDER PARTS CL84/82
KW1-M1185-00X MULTI CYLINDER
KW1-M111L-00X BARB CONNECTOR
KW1-M11B1-00X AIR HOS
KW1-M11B6-00X BOLT,HEX SOCKET HEAD
KW1-M114A-00X HAND LEVER ASSY
KW1-M116K-00X LEVER AXIS
KW1-M1177-00X MAIN ARM
KW1-M114N-00X GUIDE AXIS
KW1-M1120-00X SPROCKET ASSY
KW1-M1140-00X TAPE GUIDE ASSY
KW1-M1140-00X TAPE GUIDE ASSY
KW1-M1740-00X TAPE GUIDE ASSY
KW1-M1110-01X BODY ASSY
KW1-M1112-00X KNOCK PIN
KW1-M1113-00X KNOCK PIN
KW1-M1150-00X HANDLE LEVER ASSY
KW1-M116F-00X LEVER AXIS PIN
KW1-M115D-00X GUIDE PIN ASSY
KW1-M116D-00X TENSION LEVER ASSY
KW1-M116F-00X LEVER AXIS PIN
KW1-M1131-00X CLAMP LEVER UNIT
KW1-M1132-00X CLAMP LEVER ASSY
K87-M111V-00X SCREW,SET
K87-M111R-00X SCREW,SET
KW1-M114L-00X COVER
KW1-M111T-00X SCREW,THIN HEAD
KW1-M116J-00X METAL SHAFT
K87-M11BA-00X SCREW,FLAT HEAD +
KW1-M1191-00X DRIVE ROLLER UNIT
KW1-M1192-00X INDENTATION LVR ASSY
KW1-M119F-00X DRIVE ROLLER ASSY
KW1-M119P-00X SPRING
KW1-M11A1-00X LOWER GUIDE PLATE R
KW1-M11A3-00X LOWER GUIDE PLATE L
