  • Sinic Tek 3D SPI Machine S450

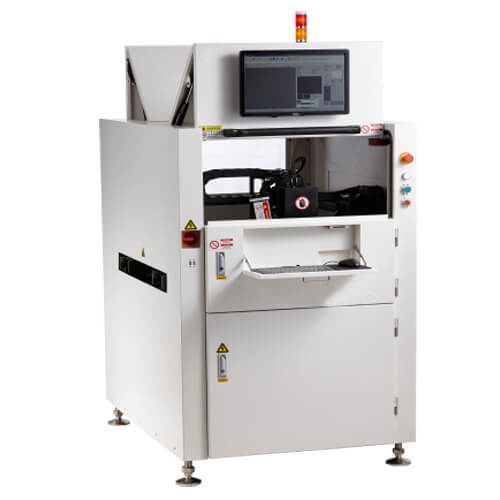

Sinic Tek 3D SPI Machine S450

Sinic Tek 3D SPI Machine S450

  • Dual lane AOI
  • PCB size:50x60-330x330mm
  • Dimension:​850x1430x1500mm
  • weight:850KG
  • Product description: Sinic Tek 3D SPI Machine, Automatic online solder paste inspection system.

Sinic Tek 3D SPI Machine S450


Sinic Tek 3D SPI Machine S450

Product’s parameters:
1.Solder paste inspection system
2 Programmable Spatial Light Modulation(PSLM PMP) [patents]
3 D-Lighting Technology[patents]
4l RGB Tune Technology [patent application]
5 Multiple- Head Technology [patents]
6l Multiple-Array Mark Detection
7 Three-Stage Mapping Traceability
8 FPCB  Detection
9 Duel-track Equipment
10 Five Minutes Programming
11 Powerful Statistic Process Control Software(SPC)



Measurement Principle

3D white light PSLM PMP(Programmable Spatial Light Modulation,commonly
known as moire fringe technology)


Volume,acreage,height, XY offset, shape

Detection of Non - Performing Types

Missing print,insufficient tin, excessive tin, bridging, offset,  mal-shapes, surface

Camera Pixel


Lens Types

Telephoto lens

Lens Resolution


FOV Size



XY Resolution):1um;Height:0.37um


Height:≤1um (3 Sigma);volume/acreage:<1%(3 Sigma)

Gage R&R

Far less than 10%

FOV  Speed


Quantity of Inspection Head

Single Head (Twin-Heads as option)

Red Green Blue/RGB Three Colas
Option Light Source

Standard  configuration

Mark-point Detection Time

0.5 sec/piece

Compensation Plate Bending
of Real-time Lift in Z-axis

Standard  configuration

Maximum Measure Height

±550um ( ±1200um as option)

Maximum Measure Height of PCB Warp


Minimum Pad Spacing

100um ( pad height of 150um as the reference)

Smallest  Measuring Size


Maximum Loading PCB Size

Dual track model :50*50mm--450*300mm

Single track model :50*50mm--450*590mm

Thickness of the PCB


Height Limitations of the Parts


Board Edge Distance

3mm , (multifunctional clip edge  as option)

Flexibility or Fixed Orbit Setting

Front orbit  (back orbit as option)

PCB Transfer Direction

Left to right or right to left

Orbit Width Adjustment

Manual, automatic as option

SPC Statistics

Histogram;X bar- R Chart;X bar- S Chart;CP&CPK;%Gage Repeatability
Data;SPI Daily/Weekly/Monthly Reports

Gerber & CAD Data Imput

Support Gerber format(274x,274d);Manual Teach model ;
CAD X/Y,Part No.,Package Type input

Computer type



Intel 6-core




2G discrete graphics

Hard disk



Standard  configuration

Operating System

Windows 7 Professional ( 64 bit)

Equipment Dimension and Weight




Air Pressure


Power (Start / normal)

Start:2.5kw /  Normal operation:2kw

Loading Requirements
of the Floor



1D / 2D Bar code capability, Bad mark function, printer
closed-loop control, out-line programming software and computer,
UPS continuous power supply
