  • Samsung SM451 Chip Mounter

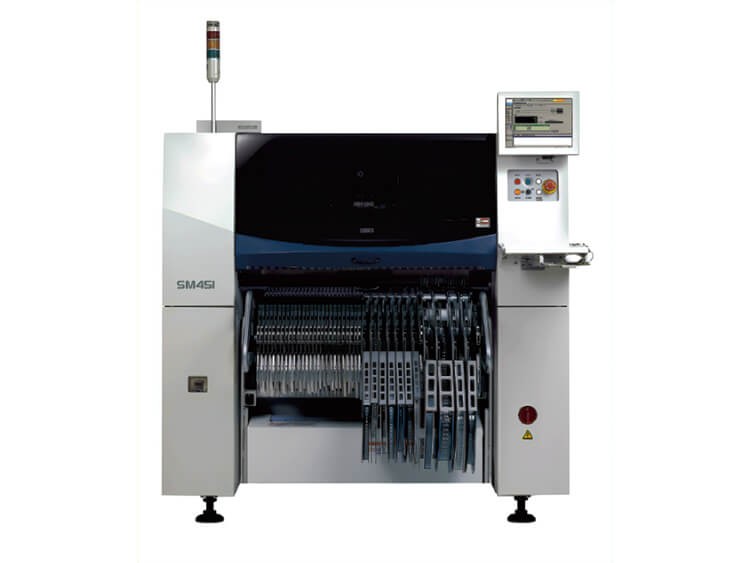

Samsung SM451 Chip Mounter

Samsung SM451 Chip Mounter

  • Component range: 0402-22mm
  • Patch speed 8,500CPH
  • 1650mm x 1690mm x 1485mm
  • Max PCB: 460mm x 420mm
  • Product description: Samsung SM451 Chip Mounter, Component range: 0402-22mm, Patch speed 8,500CPH, Max PCB: 460mm x 420mm, Dimension:1650mm x 1690mm x 1485mm
  • INQUIRY

Samsung SM451 Chip Mounter

Description:

The Samsung SM451 chip mounter is a high precision multi-functional placement system equipped with high precision force

control heads.  Based on the SM421 platform it's highly reliable. Linear scale have been

added to the X-Y axis to improve placement accuracy.


Basically, it can be applied to various odd-shaped parts from 01005 fine chips to 57 x 42 mm IC parts,

long connectors, bare chips and PIP insert parts. In addition, it also allows placement of special parts

by providing gripper nozzles and supports the functions for part height adjustment of up to 28 mm,

applicability to POP, lead lift-off check, and rear side reflection recognition.

Features:

Gripper Nozzles for Connectors
Co-Polarity Sensor for lifted leads
Force Control Z-Axis
Through Hole Component Placement
Connector Placement
Large PCB Size of 460mm x 420mmGripper nozzle for samsung SM451 Odd Form Placement Machine
0201 component recognition as standard
120 x 8mm Feeder Capacity
High Accuracy ±25µ@3σ/QFP, ±50µ@3σ/Chip
Small Footprint of just 1650mm x 1690mm x 1485mm
4.7KVA Max Power

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]




FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
