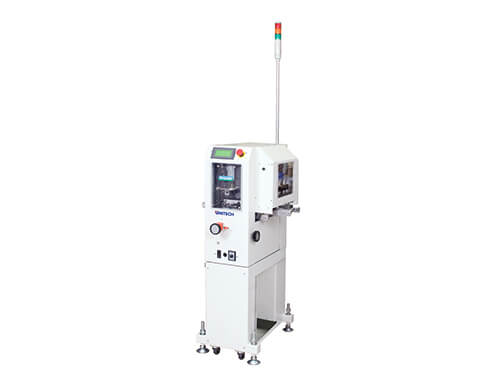

SMT PCB Cleaner UC-250M-CV

SMT PCB Cleaner UC-250M-CV

  • PCB size 50﹡50~330﹡250 mm
  • Adhesive roll 2 rolls
  • Width adjustment Manual
  • Weight About 120 kg
  • Product description: SMT PCB Cleaner UC-250M-CV, PCB size 50﹡50~330﹡250 mm, Adhesive roll 2 rolls, Adhesive roll 2 rolls, Weight About 120 kg
  • INQUIRY

SMT PCB Cleaner UC-250M-CV

Product Introduce:


SMT PCB Cleaner UC-250M-CV

Machine Description:
UC-250M-CV PCB surface Cleaning Machine ( PCB cleaner or SMT cleaner) is special designed for SMT assembly production line. It is the most effective particles remove machine by using Brush and Adhesive Rollers dual cleaning system.
Machine Features:
1.Specially designed for strict PCB surface clean requirement of SMT line.
2.Brush+Adhesive roller dual cleaning system.
3.Brush, adhesive roller, combine and pass mode,4 operation mode can be selected to use.
4.Can clean PCB top side surface with components mounted on the bottom side.
5.Standard equipped Ionizer system, greatly reduce the effect of ESD.
6.Contact type clean method, clean up to 99% dusts on PCB.
7.Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
8.Dual cleaning system assures better results than single brush or adhesive roller system.
9.Especially suitable for miner parts like 0201,01005 and precise parts like BGA, uBGA,CSP etc
10.The first SMT cleaning machine maker in the world, 10 years SMT Cleaner’s design and production experience.
11.More than 200 world famous electronic factories are using our cleaning machine on their SMT lines.
Machine Spec:

Item

UC-250M-CV Spec

PCB size

5050~330250 mm

PCB thickness

0.5~2.0 mm

Conveyor height

900±25 mm

Adhesive roll

2 rolls

Adhesive Paper

1 rolls

Brush

1 pcs

Vacuum unit

1 set

Conveyor direction

Left→Right or Right→Left

Conveyor fix side

Front side fixed or Rear side fixed

Width adjustment

Manual

Ionizer

Build-in

Air supply

0.5Mpa

Power supply

AC220V/100V, 50/60Hz,60W

Dimension

L570 x W620 x H1265(mm)

Weight

About 120 kg

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
