  • PCB magazine Unloader for LED Production Line SMT Assembly Line
  • PCB magazine Unloader for LED Production Line SMT Assembly Line

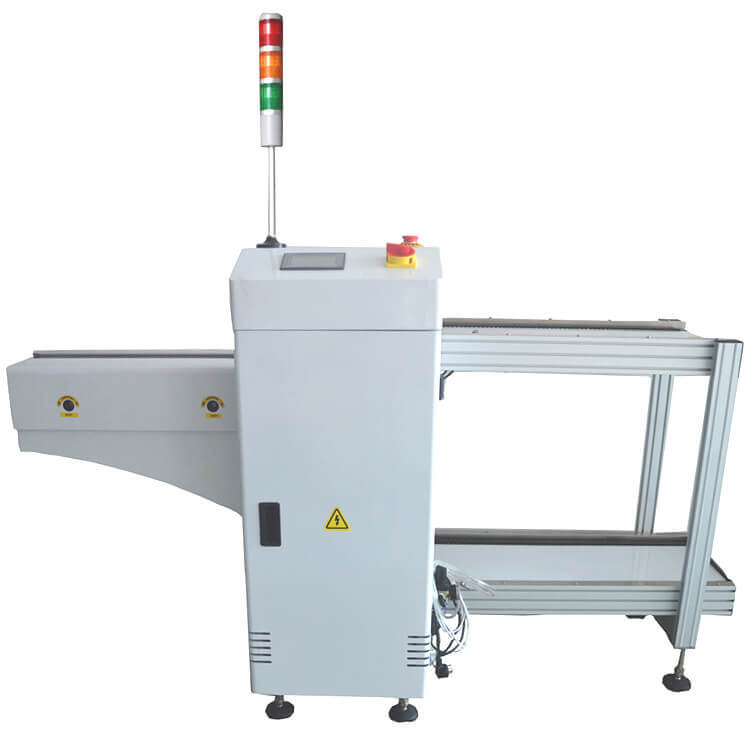

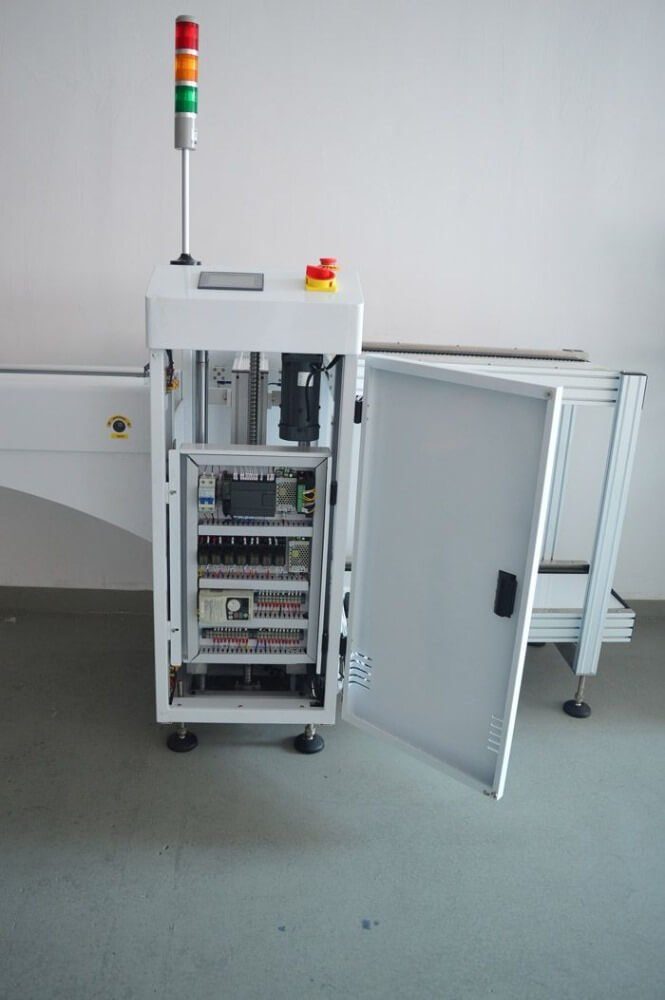

PCB magazine Unloader for LED Production Line SMT Assembly LinePCB magazine Unloader for LED Production Line SMT Assembly Line

PCB magazine Unloader for LED Production Line SMT Assembly Line

  • Demensions:1950(L)×680(W)×1650(H)mm
  • PCB size: 50x50 - 390x400mm
  • SMEMA compliant
  • Lift platform pitch selection:10?20?30?40?50
  • Product description: PCB magazine Unloader for LED Production Line SMT Assembly Line

PCB magazine Unloader for LED Production Line smt assembly line

Product Features:

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length PCB conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm


9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box



Auto Unloader





Auto SMT Unloader

1 Dimension:1950(L)×680(W)×1650(H)mm

2 Special aluminum guide rail and special chain;

3 90WSPG Brake motor drive the ball screw,Make Magazine lift;

4 Pneumatic clamping structure

5 Magazine Size :300(W)×340(L)×570(H)mm

6 PCB Size :60(W)×60(L)mm--390(W)×400(L)mm

7 Direction: R-L or L-R;

8 Lift platform pitch selection:10 20 30 40 50

9 siemens PLC control system;

10 auto upper function;

11 Control panel is touch screen;

12 Power :0.25KW

13 Power supply 220V 50HZ

14 Air Supply 4-6MPa
