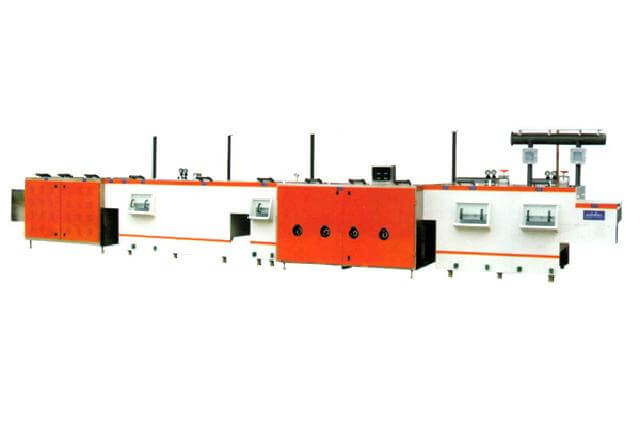

PCB Circuit Board Double-side grinding production line

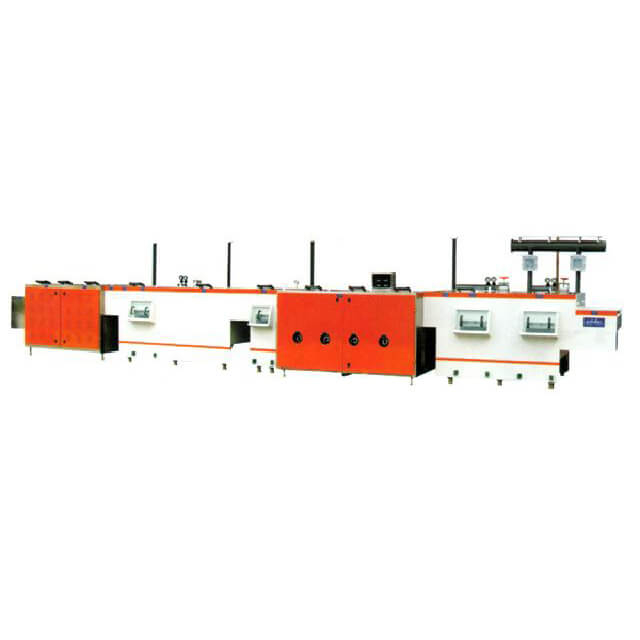

PCB Circuit Board Double-side grinding production line

  • conveyor width: 700mm
  • water consumption 8-l2L/mm
  • max PCB 640mm*610mm
  • Dimension: L7696*W1700*H1980mm
  • Product description: PCB Circuit Board Double-side grinding production line, conveyor width: 700mm, water consumption 8-l2L/mm, max PCB: 640mm*610mm, Dimension: L7696*W1700*H1980mm

PCB Circuit Board Double-side grinding production line


This production line is suitable for brushing and cleaning the front and back of the double-sided board. It is usually treated with a dry double-sided adhesive film or a surface treatment before being coated with a wet film. It can also be used for pre-soldering and surface treatment after removing lead and tin in the SMOBC process. Two upper, two lower and four roller film brushes have a rocking function to make the brush marks even. Pickling spraying is used before film brushing, which can more effectively remove the oxide layer on the surface of the board.
Feed the board → Pickling → Pump washing → Municipal washing → Four roller film brush with swinging → Pump washing → Isolated pressure washing → Municipal washing and drying → Cold air drying → Hot air drying → Out of the board

Main Parameters:

1 Dimension


2 conveyor height 900mm
3 conveyor width 700mm 4 conveyor speed 2m/min
5 Power Supply

3 phase 380V 50/60HZ

6 power 25KW
7 Min PCB 200mm*200mm 8 Max PCB 610*460mm
9 PCB thickness 0.4-3.2mm 10 water consumption 8-l2L/mm
