Middle Capacity DIP production line

Products description:

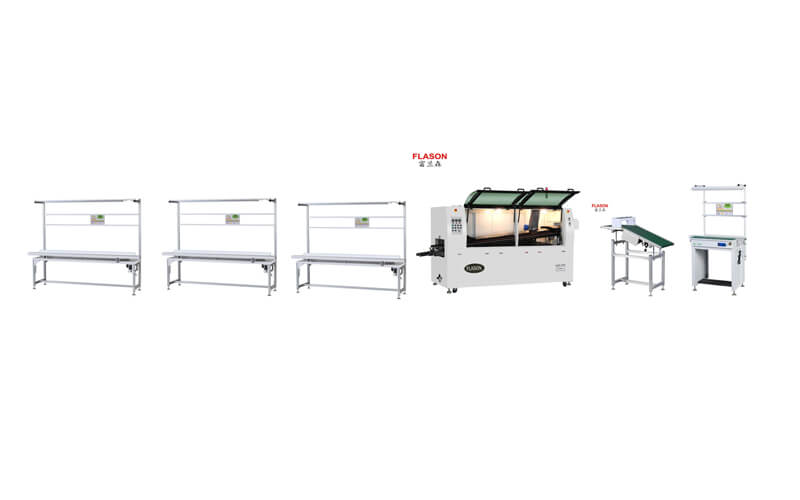

High Capacity DIP production line is using 3 DIP insert lines and 1 middle 3.5 meter wave soldering machine, 1 PCB unloader and 1 PCB conveyor for PCB quality inspection or assembly. middle production capacity output. one this middle capacity DIP production line capacity is around 2000pcs (10 hour working time) 20x20cm PCB. more big capacity, you can use 2 or 3 this production lines to got even higher production capacity.

This production line use the following DIP assembly equipments:

1.DIP insertion line


this dip line/dip assembly line is to insert the components on PCB or assembly CFL .
1.Working place arranged at one side beside the conveyor.
2.Motor running ,Chain moving .
3.Our normal length is 2.4M ,one working place per 1 meter,totally 3 working places
4.Line width is about 600mm ,total height about 1800mm ,working height 740mm.
5.Materials :aluminum .
6.Suitable PCB width 35-300mm width can adjustable.
7.fix 40 W fluorescent tube per working place ,totally 3 tubes.
8.each working place install component box fixtures /boards .
9.Moving method ; Driven by motor ,PLC control ,speed 0.3-3m/min adjustable.
10. Total Power : 60W AC220V/1phase/50HZ60w
11.By connected the line to wave soldering machine with conveyer , it will automatically go to the next step for soldering .

12.Speed: 0.2-2m/min

13.Dimension:240x60x180CM

14.Weight:Approx.80Kg

Automatic Insert Line Features:
1. this machine is used for the PCB board plug-in components for the assembly, it is used in front of wave soldering machine;
2. we can add tracheal tube, gas tube and other equipments;
3. this machine is made of aluminum which sized in 40*40mm.
4. the chain conveyor is smooth and reliable.
5. we can handle the speed by stepless frequency.


2. 3.5M wave soldering machine



1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed

2. Automatic power system, inverter control, automatic board in-load feature.

3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.

4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

5. Titanium solder fingers, high strengthened double v-groove with tin resistant

6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.

7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.

8. PID close loop controlled hot air pre-heaters

9. Timer startup feature for solder pot, solder melted in within 90 minutes.

10. With black box memory function, the machine can always store the SPC data, improve work efficiency.

11. Automatic finger cleaner equipped.

12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Model No.

FLASON N300

Number of Pre-heaters

3

Pre-heater Passage

1450mm

Body size

2800(L)*1250(W)*1560(H)

Outside dimension

3600(L)*1250(W)*1560(H)

Weight

1000KG

Total/steady consumption

19KW/5-7KW

Air supply

0.5MPa

Preheater style

Hot air

Preheater consumption

220V 6KW

Control  method

PC +PLC/press keys/Touch screen

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder Application

Lead-free / Sn-Pb

Solder pot capacity

280KG

Solder pot temperature

300ºC

Solder pot consumption

380V 9KW

Solder temp. control method

PID&SSR

Wave motor power

1KW 220V

Solder melting

About 120mins for setting 250ºC

PCB  width

50-300mm

Conveyor speed

0-1800mm/min

Conveyor direction

L-R (R-L optional)

Conveyor inclination

4-7 º

Flux pressure/capacity

3-5 bar/5.2L
