  • Juki 8mm feeder NF style NF081E

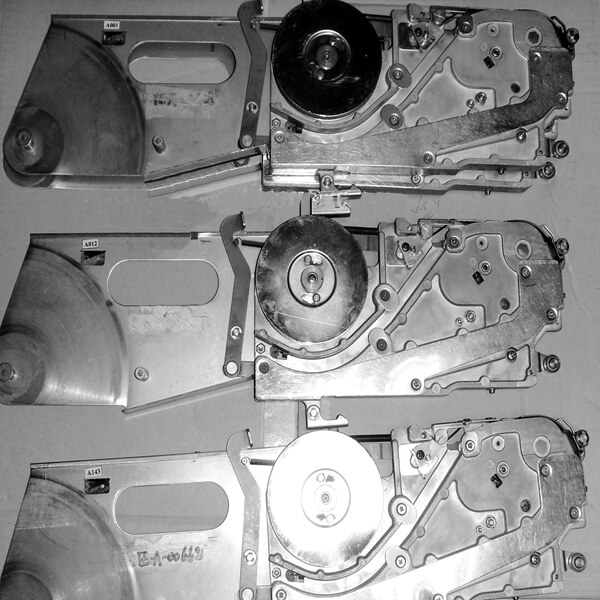

Juki 8mm feeder NF style NF081E

Juki 8mm feeder NF style NF081E

  • SMT Spare Parts
  • JUKI feeder
  • Juki 8mm feeder NF style NF081E
  • Usage: JUKI pick and place machine
  • Product description: Juki 8mm feeder NF style NF081E
  • INQUIRY

juki 8mm feeder NF style NF081E

Products description

JUKI SMT Mounter feeder :
Part Number          Description
E3003706AB0          AF12FS  JUKI FEEDER
40081758             CF03HPR 8mm TAPE FEEDER UNIT FOR 0603
40081759             CF05HPR 8mm TAPE FEEDER UNIT FOR 1005
40081760             CF08HER 8mm TAPE FEEDER UNIT (2MM PITCH)
40081761             CF081PR 8mm TAPE FEEDER UNIT
40081762            CF081ER 8mm TAPE FEEDER UNIT
E1001706CB0         CF03HP 8mm TAPE FEEDER UNIT FOR 0603
E1002706CB0         CF05HP 8mm TAPE FEEDER UNIT FOR 1005
E1004706CB0         CF08HE 8mm TAPE FEEDER UNIT (2MM PITCH)
E1005706CB0         CF081P 8mm TAPE FEEDER UNIT
E1003706CB0         CF081E 8mm TAPE FEEDER UNIT
E1012706CB0         CF8L1P 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1011706CB0         CF8L1E 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1006706CB0         CN05HP 8mm TAPE FEEDER UNIT FOR 1005
E1008706CB0         CN08HE 8mm TAPE FEEDER UNIT (2MM PITCH)
E1009706CB0         CN081P 8mm TAPE FEEDER UNIT
E1007706CB0         CN081E 8mm TAPE FEEDER UNIT
E1010706CB0         CN081C 8mm TAPE FEEDER UNIT (PAPER / EMBOSS)
E1014706CB0         CN8L1P 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1013706CB0         CN8L1E 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1015706CB0         CN8L1C 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1001706AB0         AF05HP 8mm TAPE FEEDER UNIT FOR 1005
E1004706AB0         AF081P 8mm TAPE FEEDER UNIT
E1002706AB0         AF081E 8mm TAPE FEEDER UNIT
E1005706AB0         AN05HP 8mm TAPE FEEDER UNIT FOR 1005
E1007706AB0         AN08HE 8mm TAPE FEEDER UNIT (2mm PITCH)
E1008706AB0         AN081P 8mm TAPE FEEDER UNIT
E1006706AB0         AN081E 8mm TAPE FEEDER UNIT
E1009706AB0         AN081C 8mm TAPE FEEDER UNIT
E30007060B0         FF121S 12mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm)
E30017060B0         FF122S 12mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 8mm)
E30027060B0         FF123S 12mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 12mm)
E30037060B0         FF12FS 12mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm,

DOUBLE ADVANCE: 8, 12mm)
E30047060B0         FF12NS 12mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4, 8,12mm)
E40007060B0         FF161S 16mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm)
E40017060B0         FF162S 16mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 8mm)
E40027060B0         FF163S 16mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 12mm)
E40037060B0         FF16FS 16mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm,

DOUBLE ADVANCE: 8, 12mm)
E40047060B0         FF16NS 16mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4, 8,12mm)
E50007060B0         FF242S 24mm TAPE FEEDER UNIT (SINGLE ADVANCE: 8mm)
E50017060B0         FF243S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 12mm)
E50027060B0         FF244S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 16mm)
E50037060B0         FF245S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 20mm)
E50047060B0         FF246S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 24mm)
E50057060B0         FF24FS 24mm TAPE FEEDER UNIT

(SINGLE ADVANCE: 8mm, DOUBLE ADVANCE: 12, 16, 20, 24mm)
E50067060B0         FF24NS 24mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4, 8,12mm)
E60007060B0         FF323S 32mm TAPE FEEDER UNIT (SINGLE ADVANCE: 12mm)
E60017060B0         FF324S 32mm TAPE FEEDER UNIT (SINGLE ADVANCE: 16mm)
E60027060B0         FF32FS 32mm TAPE FEEDER UNIT

(SINGLE ADVANCE: 12, 16mm, DOUBLE ADVANCE: 20, 24, 28, 32mm)
E69007050A0         NF3SNS 32mm TAPE FEEDER UNIT (ADHESIVE)
E70007060B0         FF443S 44mm TAPE FEEDER UNIT (SINGLE ADVANCE: 12mm)
E70017060B0         FF444S 44mm TAPE FEEDER UNIT (SINGLE ADVANCE: 16mm)
E70027060B0         FF44FS 44mm TAPE FEEDER UNIT

(SINGLE ADVANCE: 12, 16, 20mm, DOUBLE ADVANCE: 24, 28, 32, 36, 40, 44mm)
E80007060B0         FF564S 56mm TAPE FEEDER UNIT (SINGLE ADVANCE: 12, 16mm)
E80017060B0         FF568S 56mm TAPE FEEDER UNIT
(SINGLE ADVANCE: 12, 16, 20mm, DOUBLE ADVANCE: 24, 28, 32mm)

STICK FEEDER UNIT ( shock / vibration feeder)
E00057190A0         SFN0AS STICK FEEDER (TYPE N0)
E00107190A0         SFN1AS STICK FEEDER (TYPE N1)
E00207190A0         SFN2AS STICK FEEDER (TYPE N2)
E00307190A0         SFN3AS STICK FEEDER (TYPE N3)
E00407190A0         SFN4AS STICK FEEDER (TYPE N4)
E11117190B0         SPACER KIT (FOR SFN1AS-SFN4AS)
E02107190A0         SFW1AS STICK FEEDER (TYPE W1)
E02207190A0         SFW2AS STICK FEEDER (TYPE W2)
E02307190A0         SFW3AS STICK FEEDER (TYPE W3)
E02407190A0         SFW4AS STICK FEEDER (TYPE W4)
E02507190A0        SFW5AS STICK FEEDER (TYPE W5)

Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and

calibration are essential. Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. Flipped parts

Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the

samsunge. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the

nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste.

When the part is not placed into the paste correctly there is not enough surface tension to hold the

part while the PCB is moving. Parts will shift.
