  • JUKI Visual Inspection Machine AOI/SPI RV-2-3D

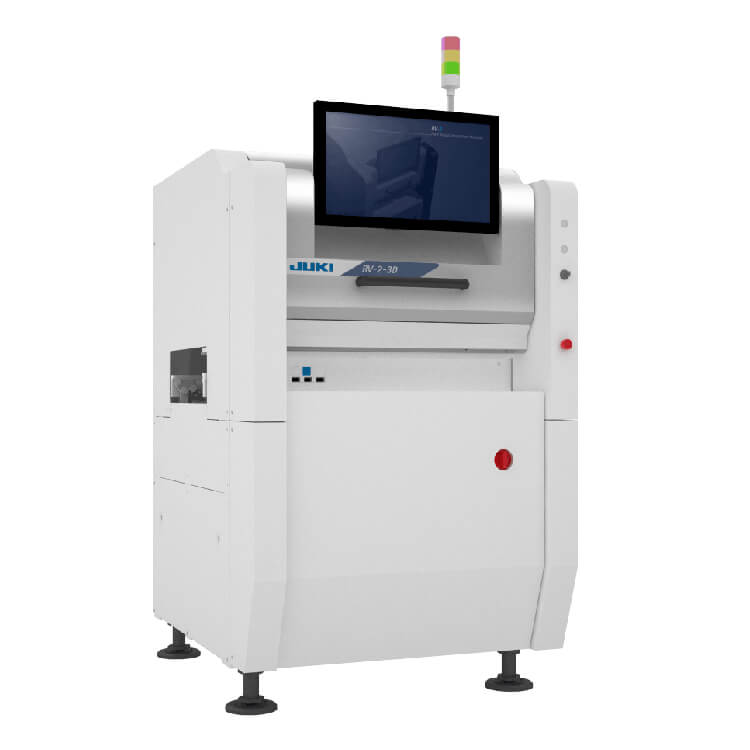

JUKI Visual Inspection Machine AOI/SPI RV-2-3D

JUKI Visual Inspection Machine AOI/SPI RV-2-3D

  • Inspection resolution:15μm
  • Board size:630mm x 300mm
  • Dimension:​W1,310mm x D1,470mm x H1,530mm
  • weight:1,000kg
  • Product description: JUKI Visual Inspection Machine AOI/SPI RV-2-3D
  • INQUIRY

juki Visual Inspection Machine AOI/SPI RV-2-3D

Introduce:

Realizing of speeding up by latest 3D unit. Achieving of 0.41 sec / FOV and 34% improvement comparing with previous model.
■   Height resolution 0.1 μm, Repeatability 10 μm *Realizing of significant precision improvement.
With new technology development, acquire clear and high-precision 3D image.
■   In addition to the previous 2D template and process mode, added newly 3D template mode.
Furthermore, developping of new algorithm for fillet inspection.
*0402 chip

Model name

RV-2-3D

PCB size

50mm x 50mm - 410mmx300mm
50mm x 50mm - 630mm x 300mm ( longer sized PWB)*

FOV(optimum)

P-3D AOI

0.41s / frame

Inspection resolution

15μm ( Standard resloution ), 10μm ( High resolution )*

Item of inspection

Missing component,Position displacement, Polarity, Front/rear reversal, Unsoldered,Bridge, Quantity of solder, Lack of insertion component, Character recognition*

Keywords:

Modular surface mounter,cheap price pick and place machine, IC placer, modular surface mounter second hand price, chip mounter

Flason Electronic Co.,ltd provide a full smt assembly line solutions, includingSMT reflow oven, THT wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
