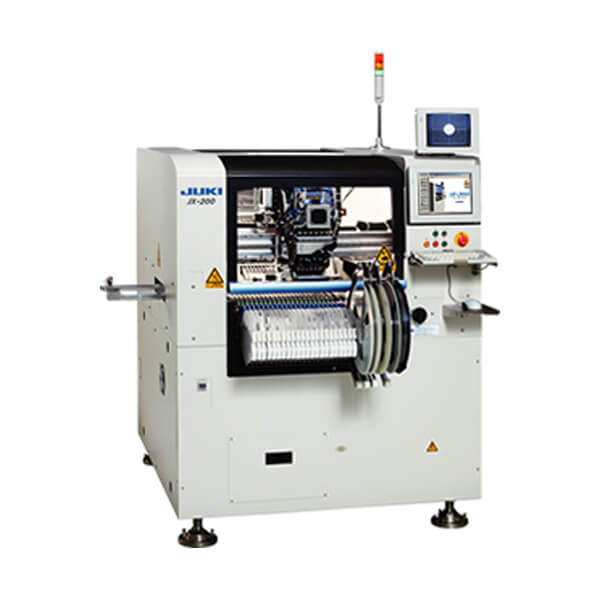

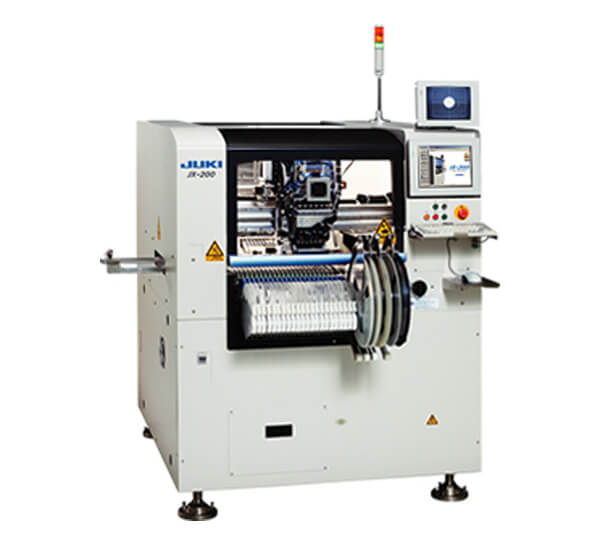

  • JUKI JX-200 Pick and Place Machine
  • JUKI JX-200 Pick and Place Machine
JUKI JX-200 Pick and Place MachineJUKI JX-200 Pick and Place Machine

JUKI JX-200 Pick and Place Machine

  • Max PCB:410mm× 250 mm
  • Mounting Speed: 18,050CPH
  • components ranging:0603~33.5mm
  • Product description: JUKI JX-200 Pick and Place Machine,Max PCB:410mm× 250 mm,Mounting Speed: 18,050CPH, components ranging:0603~33.5mm
  • INQUIRY

juki JX-200 pick and place machine

Products Description:

Placement Speed:

Chip : 18,050CPH(0.199Sec./chip/Optimum)/13,900CPH(IPC9850)
■   IC : 4,400CPH

■   Component size
Laser recognition : 0603 ※2 ~□33.5mm
Vision recognition Standard camera : □3mm~□33.5mm
High-resolution camera (option) : 1.0×0.5mm~□24.0mm
■   Placement accuracy
Laser recognition : ±0.05mm (±3σ)
Vision recognition : ±0.04mm
■   high-speed and high precision placement technology
■   Superior Versatility

■   High Quality Placement Technology

■   Easy and Compact

■   Longer sized PWB in X axis (up to 800 mm × 250 mm) (option)

※2 HMS is required when a 0603 component is placed. (option)

Board size Min.50 × 50 ~ Max.800*1 × 250mm
Component height 12mm
20mm
Component size Laser recognition 0603*2 ~ □33.5mm
Visionrecognition Standard camera □3mm ~ □33.5mm
High-resolution camera (option) 1.0 × 0.5mm ~ □24.0mm
Placement speed Chip Optimum 0.199Sec./chip (18,050 CPH)
IPC9850 13,900CPH
IC 4,400CPH
Placement accuracy Laser recognition ±0.05mm (±3σ)
Vision recognition ±0.04mm
Feeder inputs Max.60 on 8mmT/F
When using Longer sized PWB(800mm) option. (standard specification is Max.410mm)

HMS is required when a 0603 component is placed. (option)

Keywords:

Modular PCB chip mounter, SMT PCB Chip Mounter, cheap price PCB Chip mounter,SMTchip mounter, pick and place machine, used PCB Chip Mounter, second hand PCB Chip Mounter, modular surface mounter price, PCB Chip Mounter, SMT Chip Shooter, China Chip Mounter, Chip Mounter Factory, Chip Mounter Manufacturer.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
