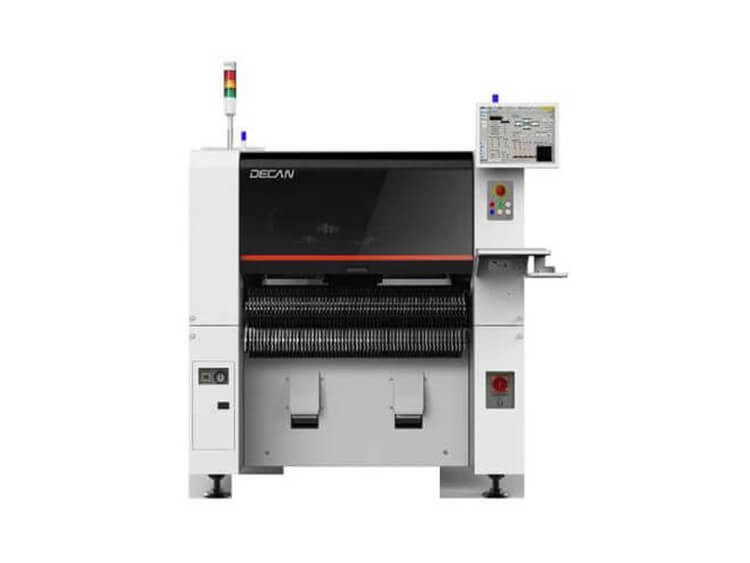

Hanwha DECAN F2 Pick and Place Machine
The Hanwha DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class.
Best in class productivity
The Hanwha DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class. The modular conveyor allows Optimal PCB flow and it is possible to convert to large board handling in the customer facility. Stage vision and tray feeder options increase its flexibility.
Responding to changes in your products
Conveniently modified on site to be capable of handling large-size PCBs; an industry first. Customer costs are minimized, and products can be changed without additional investments in new equipment.
High-speed and high-precision production from microchips to odd-shaped components in the same platform
Maximized production efficiency
Part mounting and PCB transportation path are optimized with flying vision and modular conveyor sections.
Optimizing PCB transportation paths for productivity improvement
An optimal conveyor model configuration is possible according to production line composition (shuttle ? dual) applied with a modular conveyor that is replaceable on site.
PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed.Twin Servo Control
Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
Minimized head movement path through recognizing parts during transportation following parts installation
10-spindle head with individually operating Z axes
Placement Accuracy: ±40um (0402mm 01005inch)
Applied with a high-precision linear scale and rigid mechanism
Provides precision calibration algorithms and diverse automatic calibration functions
Strengthened equipment software operation convenience
Convenient production and editing of work programs with built-in equipment optimization software
Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
Calibration and maintenance-free electric feeder
Improved work convenience with a single reel bank mounted feeder
Improved productivity through the provision of automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
Automatic loading and splicing capabilities implemented as an industry first - Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
Zero consumables costs for parts connection attained.
