  • FUJI NXT high speed Modular surface mounter Pick and Place Machine
  • FUJI NXT high speed Modular surface mounter Pick and Place Machine
  • FUJI NXT high speed Modular surface mounter Pick and Place Machine
FUJI NXT high speed Modular surface mounter Pick and Place Machine FUJI NXT high speed Modular surface mounter Pick and Place Machine FUJI NXT high speed Modular surface mounter Pick and Place Machine

FUJI NXT high speed Modular surface mounter Pick and Place Machine

  • Applicable Components:
  • Board size:330×250mm
  • Feeder inputs:20
  • placement capacity: 22,500CPH
  • Product description: FUJI NXT high speed Modular surface mounter Pick and Place Machine-Good Price! Good Quality! Good Service!
  • INQUIRY

fuji nxt high speed Modular surface mounter pick and place machine

Introduce of SMT pick and place machine:

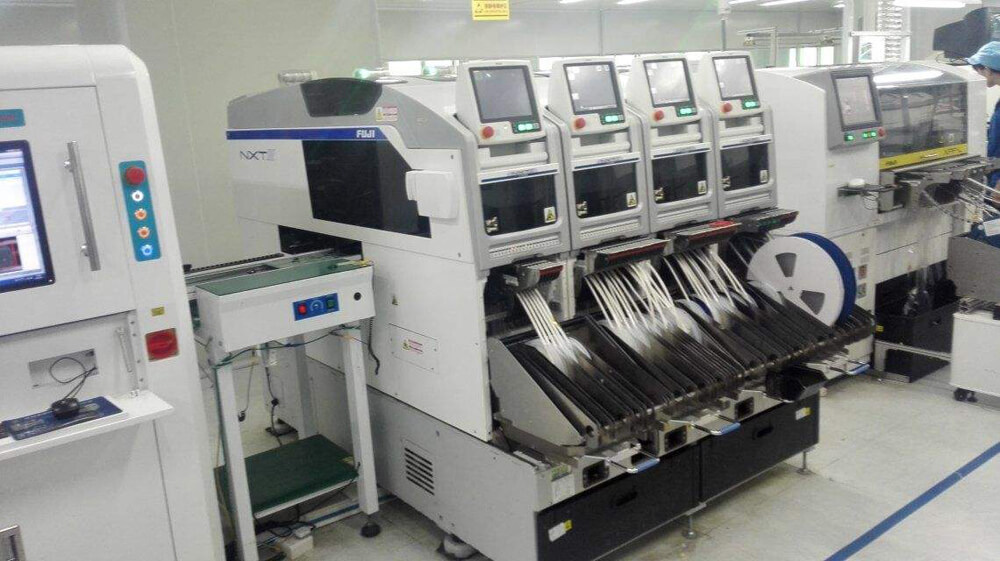

The Fuji NXT designed to meet the demands of modern production environments. Its interchangeable placement heads allow each machine module to function as either a high speed chip mounter or a multifunction placement machine and – enabling the changeover of a complete production line in just minutes. NXT modules are rapidly reconfigurable to ensure your ability to real-time production demands. M3II , M6II and newly launched M6II SP (High Accuracy Module) modules can be arranged and quickly rearranged to specifically fit your unique and dynamically changing production environment. Horizontal loading intelligent feeders not only allow components to be loaded while the machine is moving they eliminate setup errors, as the ID function ensures that components are delivered where they are needed on the board.

NXT-II Fuji Scalable Placement Platform, Fuji NXT-II Fuji Scalable Placement Platform, FUJI Machine Mfg, FUJI Machine Partner
Exchangeable Placing Head
The exchangeable head allows each module to support almost all surface mount component types and perform both highspeed chip mounting and odd-form component placement.

The NXT can accommodate PCB size upto 534 x 610 mm and is equipped with automatic rail width adjustment and an optional automatic tooling pin-support system. Intelligent Feeders are standard and can be quickly loaded into any available slot, prevent component loss on reel changeover, and provide remaining component and preventive maintenance administration. NXT's language-neutral, icon based operating system minimizes the learning curve for training operators, and improves efficiency of operators running the line. This eliminates the typical implementation issues with productivity and quality that offen accompany the integration of new technology.
Feeder Capacity:
M3II - Up to 20 types (8 mm tape)
M6II - Up to 45 types (8 mm tape)

PCB load time:
Double Conveyor: Continous 0 sec
Single conveyor: 2.5 sec
(Using only M3ll Module Single conveyor: 3.4sec)
(Using Only M6ll Module)

Placing Accuracy:
Chips:± 0.05 mm (3 sigma)
Four Side leaded: 0.03 mm (3 sigma)

Throughput:
H12HS : 22,500 CPH
H08 : 10,500 CPH
H04 :6,500 CPH
H02 :5,600 CPH
H01 : 4,200 CPH

Applicable Components:
H12HS : 0402 (01005) to 7.5 x 7.5mm Max Height : 3.0mm
H08 : 0402 (01005) to 12 x12 mm Max Height : 6.5 mm
H04 : 1608 (0603) to 38 x 38 mm Max Height : 9.5 mm
H02/H01 : 1608 (0603) to 74 x 74mm (32mm x 180mm) Max Height : 25.4mm

Module Width:
M3II - 320mm
M6II - 645mm

Machine Dimensions:
4MII Base - L:1390mm x W: 1934mm x H:1474mm
2MII Base - L: 740 mm x W: 1934mm x H: 1474mm

Keywords:

FUJI NXT Modular Surface Mounter,cheap price FUJI NXT FUJI nxt pick and place machine, FUJI NXT IC placer, FUJI NXT modular surface mounter second hand price,FUJI NXT chip mounter

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, THT wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
