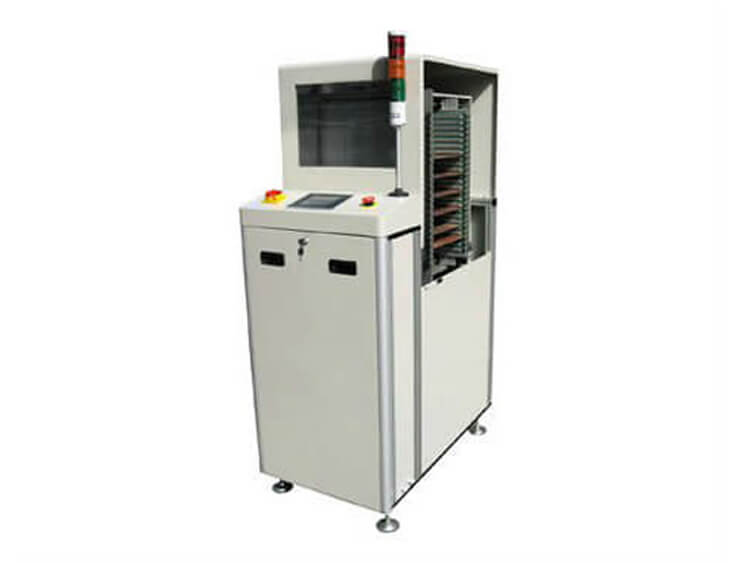

PCB loader Buffer Stocker Factory

PCB loader Buffer Stocker Factory

  • Demensions:600 x 1000 x 1600mm
  • PCB width:50-400mm
  • PCB Length:Max 460mm
  • Pitches:10,20,30mm
  • Product description: PCB loader Buffer Stocker Factory, PCB width:50-400mm, PCB Length:Max 460mm, Pitches:10,20,30mm, Demensions:600 x 1000 x 1600mm

PCB loader Buffer Stocker Factory

Product Features:

PCB loader Buffer Stocker Factory

The Buffer Loader can be used as a mid-line loader or unloader, as a LIFO and FIFO buffer between SMD assembly,  Connect with SMT and AI productions line. Straight-through may be selected so that PCB is conveyed by it, or Automatic may be selected so that this machine is used as a PCB buffer loader. (Automatic or Straight-through may be selected for this machine. When Automatic is selected and if the preceding machine is turning out PCB too fast but the following machine is feeding PCB too slowly, more PCB will be stored in this machine and sent out as long as the following machine needs it; When Straight-through is selected, this machine will be used as a conveying table.)


1. Servo motor, PLC Control system, HMI control panel.

2. 3 operative modes: FIFO buffer, LIFO buffer, pass through.

3. 24pcs PCBs can be stored temporarily, width adjustable.

4.  Direction from left to right or right to left(optional).

5. SMEMA compliant.





AC 110/220V ±10V,  50/60HZ

PCB Width

50 - 400mm(other specification on request)

PCB Length

Max. 460mm(other specification on request)

Buffer capacity

Max. 24 PCBs at pitch 10mm

Transport Height

900 ±20mm

PCB Direction

left to right (option: right to left)



Machine Dimension

600 x 1000 x 1600mm
