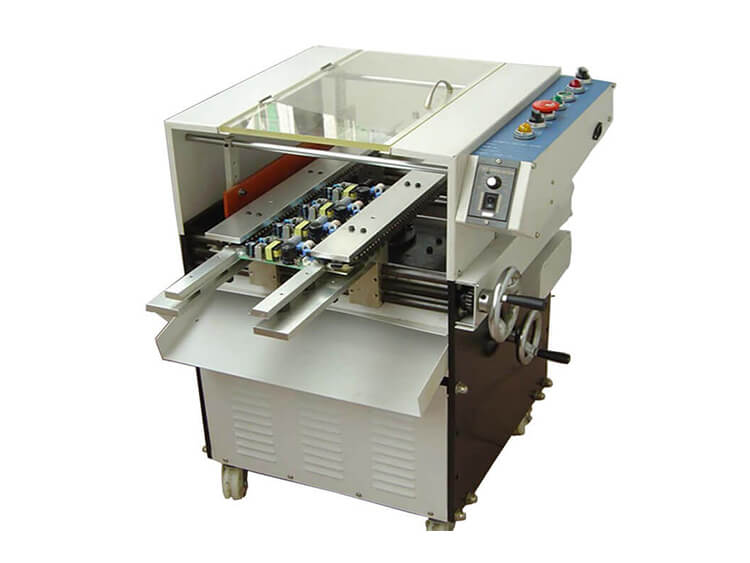

Automatic PCB foot cutting machine

Automatic PCB foot cutting machine

  • Item: PCB foot cutting machine
  • RPM: 4500
  • weight:115kg
  • power:380V
  • Product description: Automatic PCB foot cutting machine, automatic pcb lead cutting machine, cutting machine,pcb cutting machine, circuit board cut food machine, pcb lead cutter,pcb cutter,pcb cutter machine, pcb cutting
  • INQUIRY

Automatic PCB foot cutting machine

Products description



Technology Parameters:

RPM of spindle

4500

HP

3/4 HP

Feeding speed

0 - 3 m (adjust)

Min.Lead Height

1.0mm Min

Max.PCB Working size

500mm(L) x 300mm (W)

size

900(L)x670(W)x800(H) m/m

Power

380V 50/60HZ

New weight

115KGS

Technology Parameters:

RPM of spindle

4500

HP

3/4 HP

Feeding speed

0 - 3 m (adjust)

Min.Lead Height

1.0mm Min

Max.PCB Working size

500mm(L) x 300mm (W)

size

900(L)x670(W)x800(H) m/m

Power

380V 50/60HZ

New weight

115KGS

Features:
1.Best selection for medium of high volume production.This model is designed to trim the extra long leads.
2.A pair of conveyor chain is equipped in the model in which clamp and deliveer the PCB to the blade turning in high speed for trimming. Warp prevention device is equipped toensure no damage on boards.
3.Expandable in function and working independently- Themodel can be optional connecting in line with wave soldering machine by Connection Bridge and operates automatically.
4.The tungsten carbide blade is excluded in the machine
Features:
1.Best selection for medium of high volume production.This model is designed to trim the extra long leads.
2.A pair of conveyor chain is equipped in the model in which clamp and deliveer the PCB to the blade turning in high speed for trimming. Warp prevention device is equipped toensure no damage on boards.
3.Expandable in function and working independently- Themodel can be optional connecting in line with wave soldering machine by Connection Bridge and operates automatically.
4.The tungsten carbide blade is excluded in the machine


Keywords:

SMT PCB conveyor, soldering PCB conveyor, SMT conveyor, SMT soldering reflow oven, smt assembly line reflow oven, PCB soldering reflow oven, SMT assembly oven, PCB soldering oven, LED reflow oven, LED PCB reflow oven. PCB Manufacturing Equipment, LED PCB conveyor


Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine,SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare partsetc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
