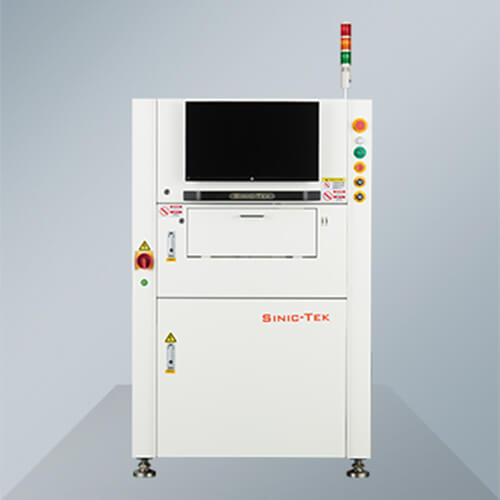

3D In line Solder Paste Inspection Machine F510
Inspection Principle:Programmable phase contour modulation measurement techniques(PSLM PMP)
Inspection type:Volume, area, height, XY offset, shape, etc.
Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.
Smallest component: 01005.
Accuracy: XY=10 um,Height = 0.37 um.
Repeatability: height：≤1um （4 Sigma）;volume/acreage：<1%（4 Sigma）.
Maximum Loading PCB Size(X*Y): 470x470mm.
Inspection Speed: 0.42 SEC/FOV.
FiducialDetection Time: 0.3sec/piece.
Maximum inspection height:±450um.
RGB Tune patented technology.
D-lighting patented technology.
Dynamic contour with coaxial telecentric lens perfect processing flexible circuit board testing.
Barcode function with traceability.
Badmark transfer function to mounters.
Access IMS system functions.
Operating System Support: Windows 7 Professional (64 bit).
Five-minute programming, one-click operation.
SPC process control.
SMT AOI Machine, Offline AOI Machine, Inline AOI Machine, SMT X Ray Machine, SMT SPI Machine, 3D SPI Machine, 3D AOI Machine, SMT AOI SPI Machine.
|Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including
SMT Reflow Oven,
Wave Soldering Machine,
Pick and Place Machine,
SMT Stencil Printer,
SMT AOI SPI Machine,
SMT Reflow Oven,
SMT Peripheral Equipment,
SMT Assembly line,
SMT Spare Parts
etc any kind SMT machines you may need, please contact us for more information:
wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]||FAQ|
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
