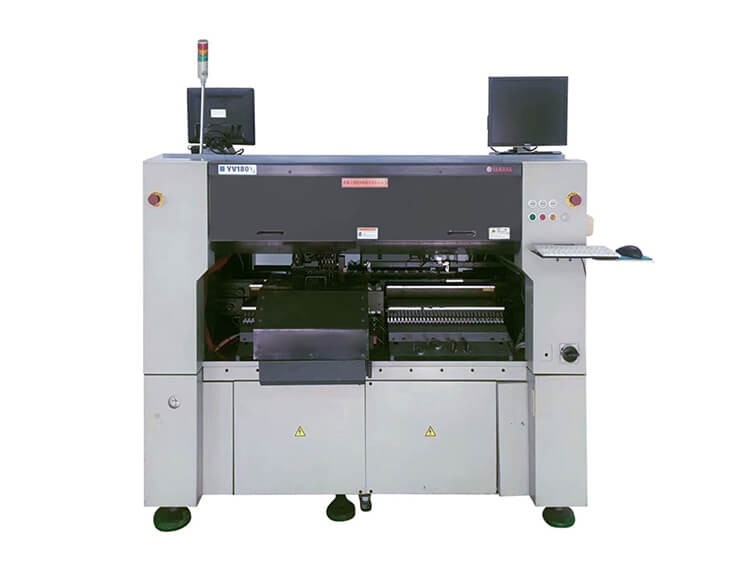

YAMAHA YV180 Chip Mounter

YAMAHA YV180 Chip Mounter

  • YAMAHA YV180 Chip Mounter
  • Patch speed 30,600CPH
  • L1960XW1630X1450
  • weight: 2080KG
  • Product description: YAMAHA YV180 Chip Mounter
  • INQUIRY

yamaha YV180 chip mounter

Products Description:

Brand: yamaha,
Model: Yamaha yv180x chip mounter
New and old: 8 into a new.
Machine age: yv180x, 20feeder, 2004

The main working parameters:
Power supply voltage: 380 (V)
Patch speed: 0.11 seconds / CHIP
0.16s / pcs, 0402/0603 / sop, QFP139029 ... Japan YAMAHA Y180X placement machine:
SMD PCB size: L330XW330MM_L50XW50MM
Chip components: 0603 (MM) -31MMX31MM
SMD components can be put 96 kinds (8MM)
Mounter size: L1960XW1630X1450
Mounter weight: 2080KG


Mounter YAMAHA YV180xg chip mounter
Substrate inch method L330 × W330mm (Max) / L50 × W50mm (Min)
L380 × W330mm (Max) / L50 × W50mm (Min)
Accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP Mounting Speed 0.095sec / CHIP 【Optimal Condition】
1608CHIP: 30,600CPH (0.118 seconds / CHIP conversion) [IPC9850 conditions: M distinction]
Mounting Area 0603 ~ □ 31mm Parts, SOP / SOJ, QFP, Connector, PLCC, CSP / BGA (※ 1)
※ □ 25mm ~ □ 31mm parts are available, the shaft can be equipped with spin-off possible.
FNC ヘ ッ ド: Before moving into the substrate above the allowable high さ 4mm or less, carrying parts may be high さ 6.5mm
Standard ヘ ッ ド: move into the substrate above the allowable high さ 6.5mm or less, carrying parts may be high さ 6.5mm
Dimensions inch method L1,960 × W1,630 × H2,000mm
The body mass is about 2,080kg


Keywords:

YAMAHA YV180 Chip Mounter,YAMAHA YV180 Chip Mounter for PCB production line,YAMAHA YV180 Chip Mounter for smt assembly line,YAMAHA YV180 Chip Mounter for LED production line,YAMAHA YV180 Chip Mounter for SMT production line,YAMAHA YV180 Chip Mounter for LED assembly line.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com



FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
