  • GKG GSE SMT Stencil Printer

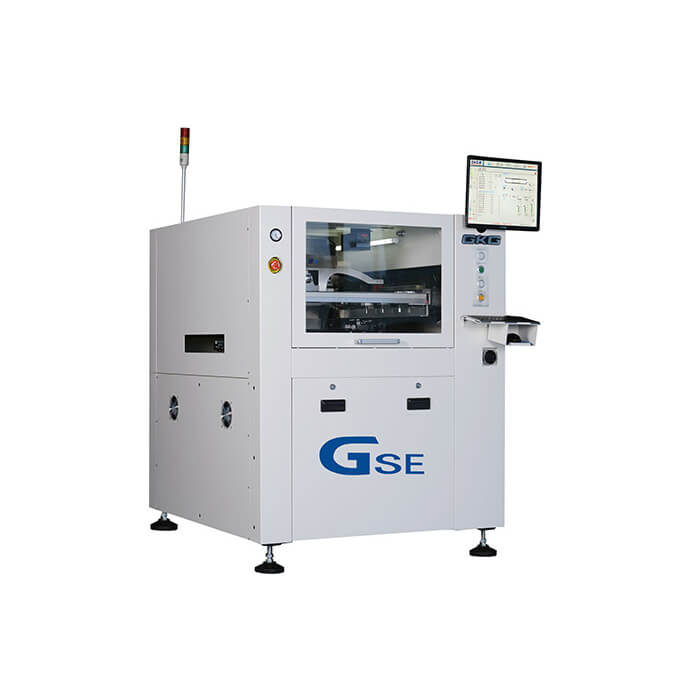

GKG GSE SMT Stencil Printer

GKG GSE SMT Stencil Printer

  • Gross Power: 50W
  • Voltage: 220V
  • size: 1158*1362*1463mm
  • Weight:1000Kg
  • Product description: GKG GSE SMT Stencil Printer Full Automatic-Good Price! Good Quality! Good Service!
  • INQUIRY

GKG GSE smt stencil printer

Products description



GKG GSE SMT Stencil Printer Full Automatic-Good Price! Good Quality! Good Service!

Detailed Product Description

Brand:: Gkg MODEL: SMT Led Screen Printer
Weight:: 600KG Lead Time:: IN Stork
Packing:: BOX CONdition: Working
POWER: 110V/220 PAYMENT TERM: T/T, Paypal, Westernunion Are All Allowed

GKG GSE GT+ G8 SMT solder stencil printer from flasonsmt FULL ASSEMBLY Line machine

Quick Detail

Automatic solder paste printer is a high-precision and high-stability automatic vision printer. GKG company follows the development trend of the SMT industry. The new generation of automatic vision printer is synchronized with international leading technology, high-resolution visual processing. , High-precision drive system, Suspending adaptive scraper, precise plate positioning processing and smart frame clamping structure, compact structure, both accuracy and high degree of flexibility, provide customers with efficient, accurate printing required Function, more customers provide a prominent price.
The main technical parameters:
(1) Printing accuracy: ±0.025mm
(2) Repeat accuracy: ±0.01mm
(3) Printing cycle: <7.5s
(4) Frame size from 420×520mm to 737×737mm
(5) Printable PCB size from 50×50mm to 400×310mm
Features:
1. The GKG dedicated manual adjustment jacking platform is simple, reliable, low-cost, and easy to adjust manually. It can quickly adjust the height of the PIN pin top of different thickness PCB boards.
2. Image and optical system New optical system - uniform ring light and high-brightness coaxial light, with brightness function that can be infinitely adjusted, making all types of Mark points can be well recognized (including uneven Mark Point) to adapt to tin, copper, gold, spray tin, FPC and other types of different colors of PCB.
3. Scraper system slide-type scraper system to improve operating stability and prolong service life
4. Cleaning System The new wiper strip ensures full contact with the stencil, and the large vacuum suction force guarantees that the solder paste remaining in the cell hole can be eliminated. The effective automatic cleaning function is achieved: three cleaning modes of wet and dry vacuum, and the software is free to use Set the cleaning mode and cleaning paper length
5. Steady steel net fixing structure
6. Perfect 2D detection system

Feature

Product Name: Smt GKG GSE full-auto Solder Paste Printer
Used for: PCB Screen Printing Stencil Machine
Warranty: 1 Year
Shipment by air
Delivery Time: 1-2Days
Our Main Market Whole of the world


Application

Production process

The production of the production process requires the preparation of the following types of data, and the preparation needs to be carried out in the following order.

PWB/Stencil Data → Printing Condition Data Input

(Printer Condition Data) → Check data input

(Inspection Data) →Cleaning Data →(Stinky)Supplementary data input

(Dispensation Data) The above data needs to be focused on the first item (PWB and screen data), the second item (print condition data) and the fourth item (cleaning data).

3, data input: use ALT to activate menu selection

2, Data Input

1. PWB/Stencil Data will pop up a PWB/Stencil data input screen. The data to be input in this screen is:

1) PWB ID ---- The code of the currently produced PWB.

2) PWB size (X, Y) --- The length and width of the current production PWB.

3) Layout offset (X, Y)----The deviation of the current production PWB (generally refers to the lower right corner of the PWB).

4) Thickness (Z) ----- The thickness of the current production PWB board.

5) Stencil ID ---- The code of the currently used stencil.

6) Stencil size (X, Y)--- The length and width of the currently used stencil.

7) Printer layout standard----Select the mode of deviation standard of current printing.

8) Origin offset (X, Y) ----- Deviation between the PWB reference point and the stencil reference point.

9) PWB type ----- Select the PWB type in the selection box.

10) BOC mark NO.1 (X, Y) - PWB and the deviation of the screen correct the coordinates of the first identification point.

11) BOC mark NO.2 (X, Y) - - - Deviation of PWB and net plate Corrects the coordinates of the second identification point.

12) The asterisk following SOC mark NO.1, SOC mark NO.2, and BOC mark NO.1 and BOC mark NO.2 indicates the identification information of this identification point.

Adjustment method:

1. Move the cursor to the asterisk of the corresponding recognition point and press the "Camera" key on the HOD (Handheld Operating Device).

2. First adjust the shape of the recognition point, align the recognition frame with the surrounding of the recognition point, press "Enter" key to confirm and use the arrow keys to select the shape of the recognition point, select the corresponding shape, and then press "Enter" to confirm.

3. Use the arrow keys to adjust the sensitivity of the recognition. After the adjustment, press the "Enter" key to confirm.

4. Use the arrow keys to adjust the identified range. First adjust the upper left and then adjust the lower right. After the adjustment, press the "Enter" key to confirm. After compiling the above data, you can start to compile the print condition data. You can use the ALT key to activate the menu selection 3, Change 2Printer Condition Data or directly press "F6" to switch to the print condition data creation screen.

Specification :
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~1200mm x 800mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item

Parameter

Repeat Position Accuracy

±0.025mm(Test data and method are available)

Printing Accuracy

±0.01mm(Test data and method are available)

Printing Speed / Cycle Time

<10s (Exclude Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min-Max

470mm X340mm-1300mm X850mm

Screen Stencil Size/Thickness

20mm ~ 40mm

PCB Size/Min-Max/Thickness

80X50mm-1200X800mm/0.4~15mm

PCB Warpage Ratio

1%Based on diagonal length

Bottom of Board Size

15mmStandard configuration, 25mm

Edge of Board Size

3mm

Conveyor Height

900±40mm

Conveyor Direction

Left-Right; Right-Left; Left-Left; Right-Right

Conveyor Speed

100-1500mm/sec Programmable control

Board Positioning

Support System

Magnetic pin/Side support block/Flexible automatic pinoptional

Clamping System

Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting

Print head

Closed-loop pressure feedback, programmable pressure control

Squeegee Speed

6~300mm/sec

Squeegee Pressure

0-10kg software controlclosed-loop pressure feedback, pressure value visible

Squeegee Angle

60°(Standard )/55°/45°

Squeegee Type

Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.

Steel Mesh Separation Speed

0.1~20mm/sec Programmable Control

Cleaning Method

Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods

Table Adjustment Range

X/Y:±20mm;θ:±2°

Type of Fiducial Point

Standard geometry shape of fiducial point, bonding pad / Stencil hole

Camera System

Single digital camera for upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1Φ 1.5KW

Machine Dimensions/Weight

Depends on exactly model

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%

Keywords:

SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer,600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine,SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
